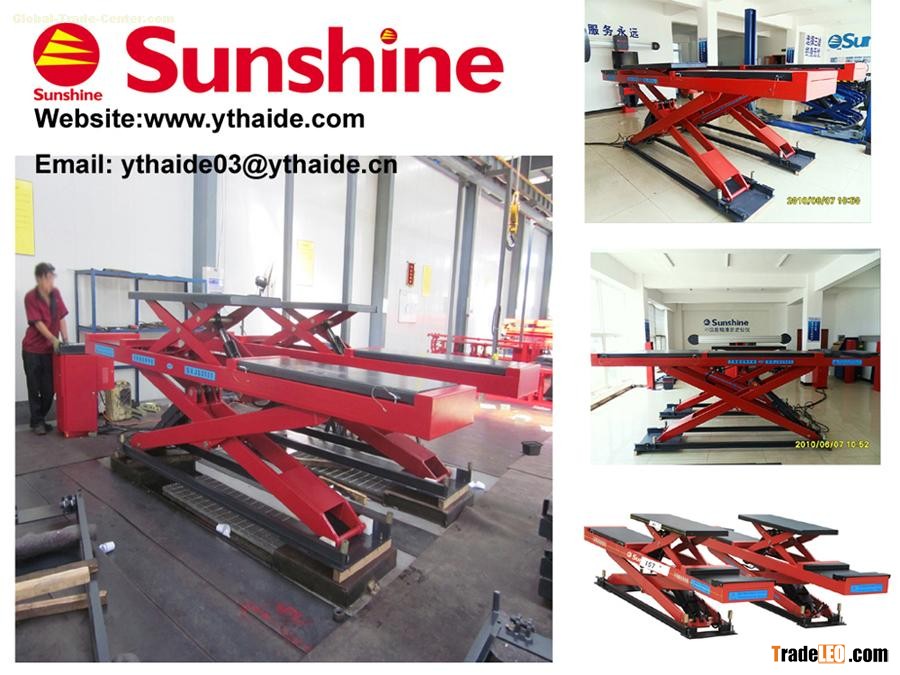

Model: SXJS3521    scissor alignment lift  3.5tons

Double-Deck Lift (For Wheel Aligner)

With automatically Pneumatic lock

With rubber pads for protection

Position for rolling angle plate for alignment

Min lifting hight:340mm

Specifications:

Lifting Capacity: 3500Kg (8000lbs)

Max lifting height (main platform with sub-platform): 2200mm

Main platform lifting height (sub-.platform): 1750mm(450mm)

Clearance between platform: 800mm Total width: 2100mm

Single platform total width: 650mm  Total length: 4100mm

Lifting Time: 40s    Lowering Time: 18s-40s

Power Supply Voltage: 220V/380V, 1ph/3ph

Motor power: 2.2Kw

Net Weight: 1750Kg   Gross Weight: 1800Kg

Packing Dimension:

4030*615*460mm (2pcs)  470*340*1030mm (1pc)

Cubic Meter: 3.0cbm

Shipping: 9 pieces / 40’ container  12 pieces / 40HQ
