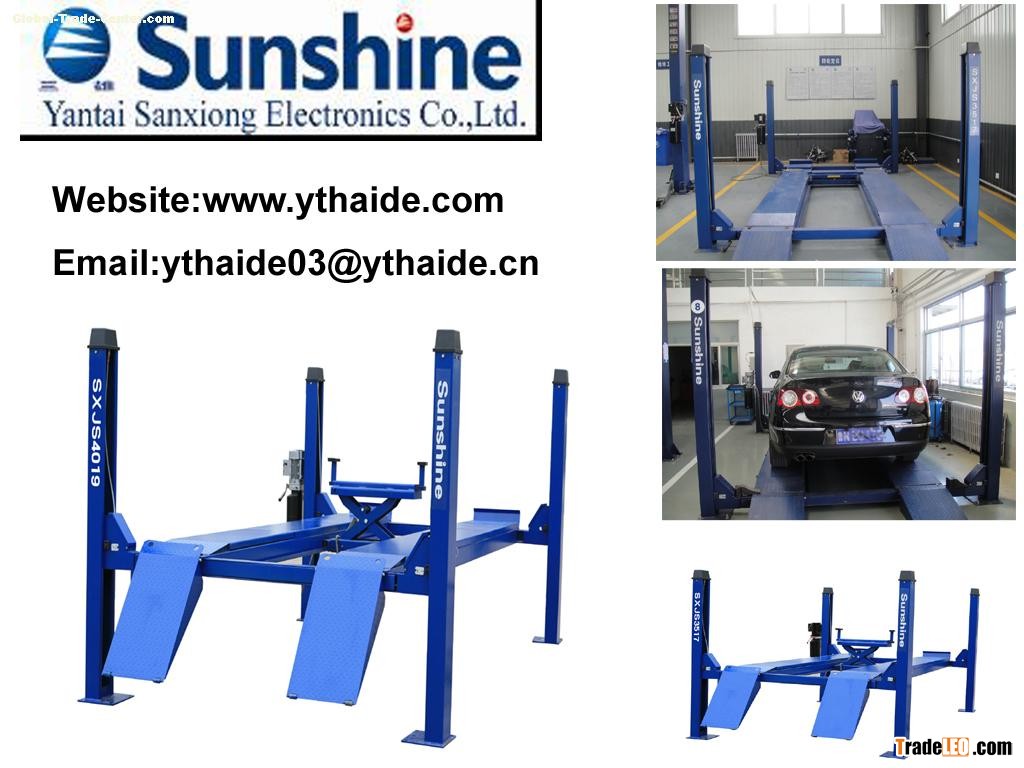

Model: SXJS4019  manual release  4tons

Come with Rolling jacks and Side Slipping plate.

4post alignment lift

Specifications:

Lifting Capacity: 4000Kg (9000lbs)

Sec. Lifting Capacity: 2000Kg

Lifting Height: 1900mm

Sec. Lifting Height: 350mm

Lifting Time (Loaded): 50s

Lowering Time (Loaded): 30s

Power Supply Voltage: 220V,1ph or 380V, 3ph

Motor Power: 2.2Kw

Overall Width: 3276mm

Distance Between Post: 2420mm

Width Between Platforms: 1000mm

Width of Each Platforms: 508mm

Length of Platform: 4300mm

Overall Length: 5415mm

Overall Height: 2220mm

Ramp width: 490mm   Ramp length:880mm

Net Weight: 1100Kg (2500lbs) Gross weight:1200kg

Cubic Meter: 3.00cbm

Shipping: 11pcs / 20’ container 22pcs / 40’ container
