Brand:-
Model:-
MOQ:-0 -

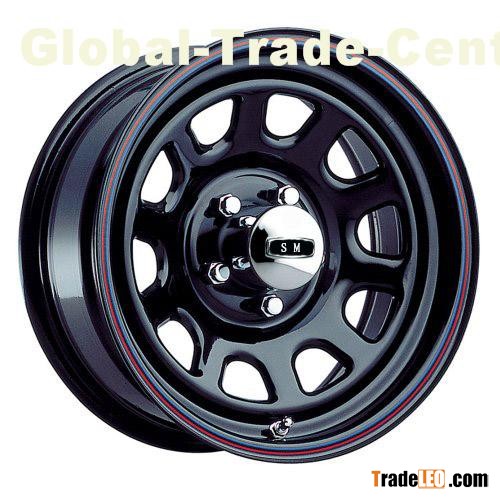

Auto Steel Wheels, Daytoma steel wheel, offroad 4x4 wheels, trailer steel wheels, Galvanized Steel Spoke Trailer Wheel, black steel wheels, white steel wheels
Our Wheel can be ordered by many designs or sizes.
1. 5 HOLES WITH DIAMETER = 14mm----16mm
2. PCD = 100-----165.1MM
3. WEB THICKNESS = 3.5mm---7.5mm
4. TYRE SEATING AREA =124mm----164.5MM(40MM EACH SIDE)
5. OVER ALL RIM WIDTH =140mm----204.5mm
6. OFFSET = ZERO CENTRE HOLE DIAMETER
7. VALVE HOLE DIAMETER =12mm---16MM
8. TOTAL WHEEL WEIGHT : 8-20KGS
| Size | PCD | CB | ET |
| 12x4J 13x4.5J 13x7J 14x7J 14x5J 14x6J 15x5J 16x7J 16x6J 16x8J 17x7J 17x8J 17x9J 15x6J | 4x100 | 68 | 0~-10 |
| 4x101.6 | 68 | 0~-10 | |
| 4x114.3 | 75 | 15~-10 | |
| 4x130 | 84 | 10~-10 | |
| 4x140 | 108 | 15~-10 | |
| 5x108 | 75 | 15~-10 | |
| 5x114.3 | 75 | 0~-10 | |
| 5x114.3 | 75 | 10~-10 | |
| 5x114.3 | 75 | 15~-10 | |
| 5x120.65 | 75 | 15~-10 | |
| 5x127 | 75 | 10~-10 | |
| 5x130 | 84 | 15~-10 | |
| 5x139.7 | 108 | 15~-10 | |
| 5x150 | 110 | 15~-10 | |
| 5x165.1 | 125 | 10~-10 | |
| 6x139.7 | 108 | 15~-10 | |
| 8x165.1 | 125 | 15~-10 | |
| 8x165.1 | 127 | 10~-10 | |
| 8x165.1 | 127 | -10~-25 | |
| 8x165.1 | 127 | -20~-50 |
Packaging & Delivery
Packing detailed:carton + plastic bag +wheel ; each carton hold about 0.02M3----0.05M3 change with wheel sizes.
Delivery:20-30 days after receipt of deposit
Specifications
Nominated Steel Wheel
1.Material: Car Steel
2.Certified by ISO/TS16949: 2002
3.Eg. NC8425 SIZE6.5x16, PCD5x112, CB57, ET42
Our Steel Wheel can be ordered by many designs or sizes.
Such as:
1. Size: 6.0x15
2. Number of holes: 5
3. P.C.D: 112
4. Center hole: 57
5. Offset: +42
6. Weights:6—10kgs
7. Black or Silver color
8. Material: High quality car steel
Shipping declaration
We will load products as soon as we finished all,but shipping terms depending on the country delivered to.We are not responsible for any accidents, delays or other issue which aroused by the shipping service. Payment trems
Usually,we accept T/T,L/C only
Delivery upon pre-payment 30% as down payment before production and the balance 70% should be paid before delivery
Some instance of car
| Applicable type of vehicles | ||
| ALFA ROMEO | AUDI | CITROËN |
| FIAT | FORD | LANCIA |
| MAZDA | OPEL | PEUGEOT |
| RENAULT | SEAT | SKODA |
| VOLKSWAGEN | TOYOTA | HonDA |
More......
