Ramli Nainggolan have a special price for all of our unit ,Reduced Price event for 2014 – 2015 dirtbikes/motocross/off road motorcycles models.Please visit our site or contact us for check our product available.

WORLD WIDE SHIPMENT!!

Store Website : http://www.ramlinainggolan.com

ENGINE:

Engine Type Single-Cylinder

Cylinders 1

Engine Stroke 4-Stroke

Cooling Liquid

Valves 4

Valves Per Cylinder 4

Valve Configuration SOHC

Bore (mm/in) 95 / 3.74

Stroke (mm/in) 72 / 2.83

Displacement (cc/ci) 510.4 / 31.1

Compression Ratio 11.8:1

Starter Electric / Kick

Fuel Requirements Premium

Fuel Type Gas

Carburetion Brand Keihin

Fuel Injector Yes

Fuel Injector Size (mm) 42

Carburetor No

Carburetion Type Fuel Injected

TRANSMISSION:

Transmission Type Manual

Number Of Speeds 6

Overdrive Yes

Primary Drive (Rear Wheel) Chain

Gear Ratio (1/2/3/4/5/6) 2.57 / 1.88 / 1.47 / 1.18 / 0.96 / 0.81

Reverse No

Final Drive Ratio 3.85

WHEELS & TIRES:

Wheels Composition Aluminum

Tube / Tubeless Tubed

Chromed No

Tire Brand Dunlop®

Front Tire Width 90

Front Tire Aspect Ratio 90

Front Tire Speed Rating M

Front Wheel Diameter 21

Rear Tire Width 110

Rear Tire Aspect Ratio 100

Rear Tire Speed Rating M

Rear Wheel Diameter 18

Front Tire (Full Spec) Dunlop® GEOMAX AT81 90/90 R21 54M

Rear Tire (Full Spec) Dunlop® GEOMAX AT81 110/100 R18 64M

BRAKES:

Brake Brand Name Brembo®

Front Brake Type Hydraulic Disc

Front Brake Diameter (in/mm) 10.2 / 260

Rear Brake Type Hydraulic Disc

Rear Brake Diameter (in/mm) 8.7 / 220

SUSPENSION:

Front Suspension Type Inverted Fork

Front Suspension Size (in/mm) 1.9 / 48

Front Travel (in/mm) 11.8 / 300

Front Adjustable Fork Pre-Load Yes

Front Adjustable Rebound Damping Yes

Front Central Suspension Strut No

Front Suspension Brand Name WP

Rear Suspension Type Twin Sided Swing Arm

Rear Travel (in/mm) 13.2 / 335

Rear Adjustable Shock / Spring Pre-Load Yes

Rear Adjustable Rebound Damping Yes

Number Rear Shock Absorbers 1

Rear Suspension Brand Name WP

Rear Suspension Material Aluminum

Air Adjustable No

STEERING:

Steering Control Handlebar

TECHNICAL SPECIFICATIONS:

Wheelbase (in/mm) 58.4 / 1482

Ground Clearance (in/mm) 13.6 / 345

Dry Weight (lbs/kg) 245.8 / 111.5

Fuel Capacity (gal/l) 2.3 / 8.5

Engine Displacement to Weight (cc) 2.08

SEATS:

Seat Type One-Piece

Adjustable No

Seat Material Vinyl

Seat Location Driver

Folding No

Seat Height (in/mm) 38.2 / 970

Number Of Seats 1

EXTERIOR:

frame Chromium Molybdenum

Body Material Plastic

Hand Grips Standard

Foot Peg Location Driver

Adjustable No

Drive Shaft Guard No

Fork Guards Yes

Saddle Bag Guard No

Belt Guard No

Hand Guards Yes

Brush Guard No

Heel Guards Yes

Exhaust Guard Yes

Light Guard No

Side Cover No

Fuel Tank Cover No

Front Fender Standard

Rear Fender Standard

Stand Type Kick

Handlebars Standard

Handlebar Pads Standard

INSTRUMENTATION:

Digital Instrumentation Standard

Clock Standard

Speedometer Standard

Fuel Level Warning Type Light

PRICING:

Warranty (Months/Condition) 1 / Limited

IDENTIFICATION:

Generic Type (Primary) Off-Road

Manufacturer Recommend Minimum Age 16

Parent Company KTM

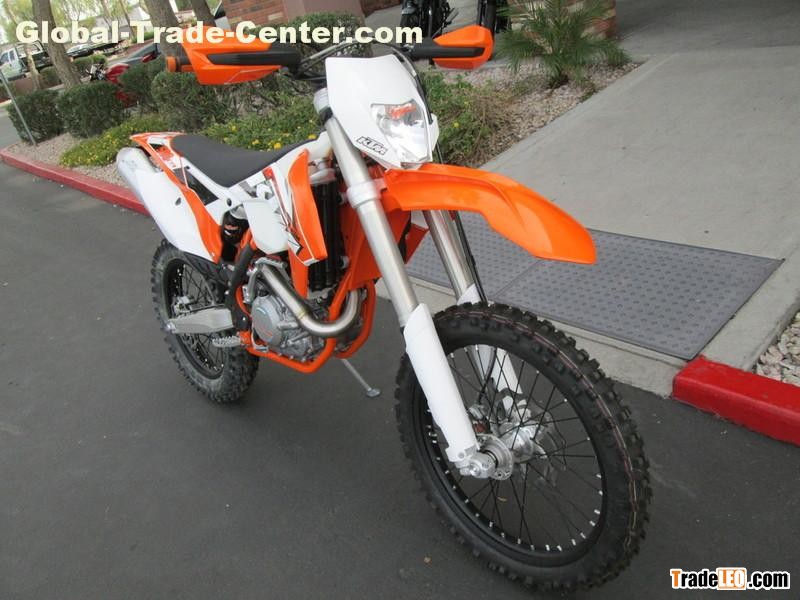

Display Name 500 XC-W

PAINT & FINISH:

metallic No

Decal Kit Standard

LIGHTS:

Halogen Headlight (s) Standard

CONVENIENCE:

Adjustable Handlebars Standard
