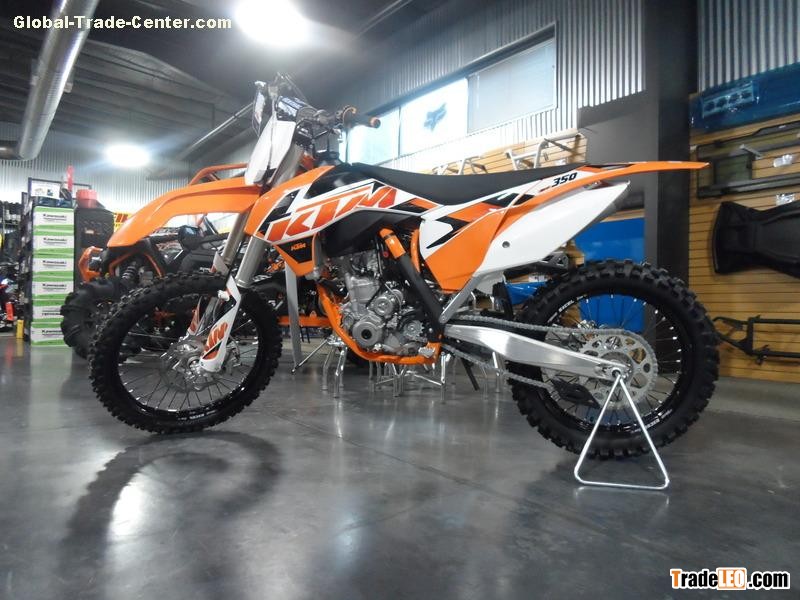

2015 KTM SX 350 F Motorcross Dirtbike
2016-09-12 01:09  Views:60
Price:5400.00 USD/Sets
Brand:KTM
Model:SX 350 F
MOQ:1 Sets
Send Inquiry

Ramli Nainggolan have a special price for all of our unit ,Reduced Price event for 2014 – 2015 dirtbikes/motocross/off road motorcycles models.Please visit our site or contact us for check our product available.

WORLD WIDE SHIPMENT!!

Store Website : http://www.ramlinainggolan.com

Engine Type Single-Cylinder

Cylinders 1

Engine Stroke 4-Stroke

Cooling Liquid

Valves 4

Valves Per Cylinder 4

Valve Configuration DOHC

Bore (mm/in) 88 / 3.46

Stroke (mm/in) 57.5 / 2.26

Displacement (cc/ci) 349.7 / 21.3

Compression Ratio 13.7:1

Starter Electric

Fuel Requirements Premium

Fuel Type Gas

Carburetion Brand Keihin

Fuel Injector Yes

Fuel Injector Size (mm) 44

Carburetor No

Carburetion Type Fuel Injected

TRANSMISSION:

Transmission Type Manual

Number Of Speeds 5

Overdrive No

Primary Drive (Rear Wheel) Chain

Gear Ratio (1/2/3/4/5) 2 / 1.63 / 1.33 / 1.14 / 0.95

Reverse No

Final Drive Ratio 3.57

WHEELS & TIRES:

Wheels Composition Aluminum

Tube / Tubeless Tubed

Front Wheel Width (in) 1.6

Rear Wheel Width (in) 2.15

Tire Brand Dunlop®

Front Tire Width 80

Front Tire Aspect Ratio 100

Front Tire Speed Rating M

Front Wheel Diameter 21

Rear Tire Width 110

Rear Tire Aspect Ratio 90

Rear Tire Speed Rating M

Rear Wheel Diameter 19

Front Tire (Full Spec) Dunlop® GEOMAX MX52 80/100 R21 51M

Rear Tire (Full Spec) Dunlop® GEOMAX MX52 110/90 R19 62M

BRAKES:

Brake Brand Name Brembo®

Front Brake Type Hydraulic Disc

Front Brake Diameter (in/mm) 10.2 / 260

Rear Brake Type Hydraulic Disc

Rear Brake Diameter (in/mm) 8.7 / 220

SUSPENSION:

Front Suspension Type Inverted Fork

Front Suspension Size (in/mm) 1.9 / 48

Front Travel (in/mm) 11.8 / 300

Front Adjustable Fork Pre-Load Yes

Front Adjustable Rebound Damping Yes

Front Central Suspension Strut No

Front Suspension Brand Name WP

Rear Suspension Type Twin Sided Swing Arm

Rear Travel (in/mm) 12.5 / 317

Rear Adjustable Shock / Spring Pre-Load Yes

Rear Adjustable Rebound Damping Yes

Number Rear Shock Absorbers 1

Rear Suspension Brand Name WP

Rear Suspension Material Aluminum

Air Adjustable No

STEERING:

Steering Control Handlebar

TECHNICAL SPECIFICATIONS:

Wheelbase (in/mm) 58.9 / 1495

Ground Clearance (in/mm) 14.8 / 375

Dry Weight (lbs/kg) 233.5 / 105.9

GVWR (lbs/kgs) 739 / 335

Fuel Capacity (gal/l) 2 / 7.5

Engine Displacement to Weight (cc) 1.5

SEATS:

Seat Type One-Piece

Adjustable No

Seat Material Vinyl

Seat Location Driver

Folding No

Seat Height (in/mm) 39.1 / 992

Number Of Seats 1

EXTERIOR:

frame Chromium Molybdenum

Body Material Plastic

Hand Grips Standard

Foot Peg Location Driver

Chain Guard Yes

Chassis Protectors No

Drive Shaft Guard No

Engine Case Guard No

Fork Guards Yes

Saddle Bag Guard No

Belt Guard No

Brush Guard No

Exhaust Guard Yes

Light Guard No

Side Cover No

Fuel Tank Cover No

Front Fender Standard

Rear Fender Standard

Stand Type Kick

Handlebars Standard

Handlebar Pads Standard

PRICING:

Warranty (Months/Condition) 1 / Limited

IDENTIFICATION:

Generic Type (Primary) Off-Road





Manufacturer Recommend Minimum Age 16



Parent Company KTM

Display Name 350 SX-F

PAINT & FINISH:

metallic No

Decal Kit Standard

CONVENIENCE:

Adjustable Handlebars Standard
