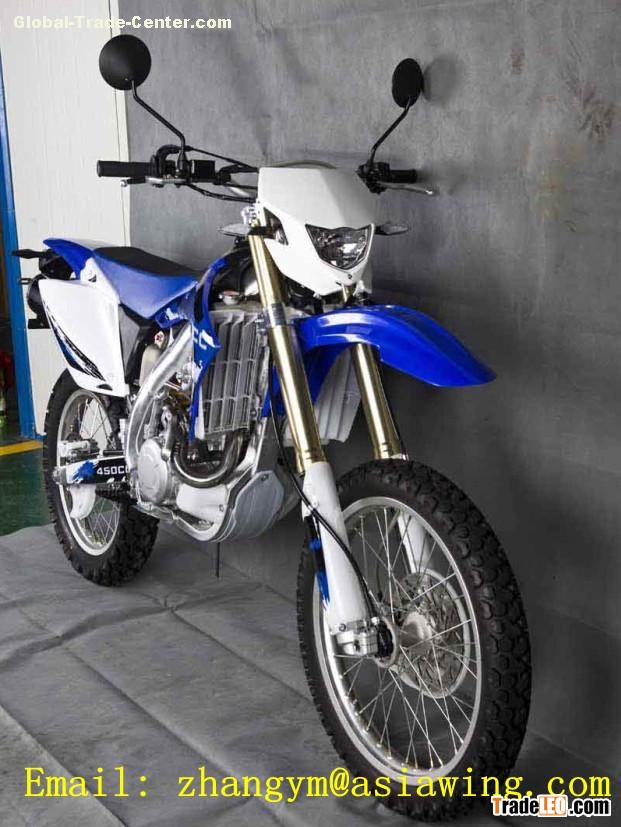

Brand:ASIAWING
Model:LX450E
MOQ:3 Sets
Send Inquiry
| Engine | |
| Engine Type | 449cc liquid-cooled, single cylinder,four-stroke engine |
| Bore & Stroke | 96mm * 62.1mm |
| Compression ratio | 11:1 |
| Fuel System | Carburetor |
| Maximum Output | 43.5hp / 7500rpm |
| Maximum Torque | 42.5N.m / 6500rpm |
| Ignition System | CDI |
| Starting System | Electric & kick |
| Gearshift Type | 5 speed ,international gear shift |
| Final Drive | KMC 520 chain ,13T/48T |
| CHASIS / SUSPENSION / BRAKES | |
| Chasis | Aluminum alloy |
| Front Suspension | 47mm Inverted with rebound and compression-damping adjustability,250mm travel |
| Rear Suspension | Pro-link single shock with spring preload and rebound-damping adjustability,115mm travel |
| Front Brakes | Single 240mm disc with twin-piston caliper |
| Rear Brakes | Single 240mm disc |
| Front Wheel | 21' |
| Rear Wheel | 18' |
| DIMENSIONS | |
| L × W × H | 2320 × 830 × 1300 mm |
| Wheelbase | 1500 mm |
| Ground Clearance | 330 mm |
| Seat Height | 960 mm |
| Fuel Capacity | 8 liters |
| Weight | 120 kg |
| OTHERS | |
| Available Colors | Blue / Black |
| QTY (1*20') | 24Pcs |
| Rearlight & Turning lights | LED |
| Speedometer | Digital for option |
