Brand:NBLUCK
Model:LK600
MOQ:1 Pieces
Send Inquiry

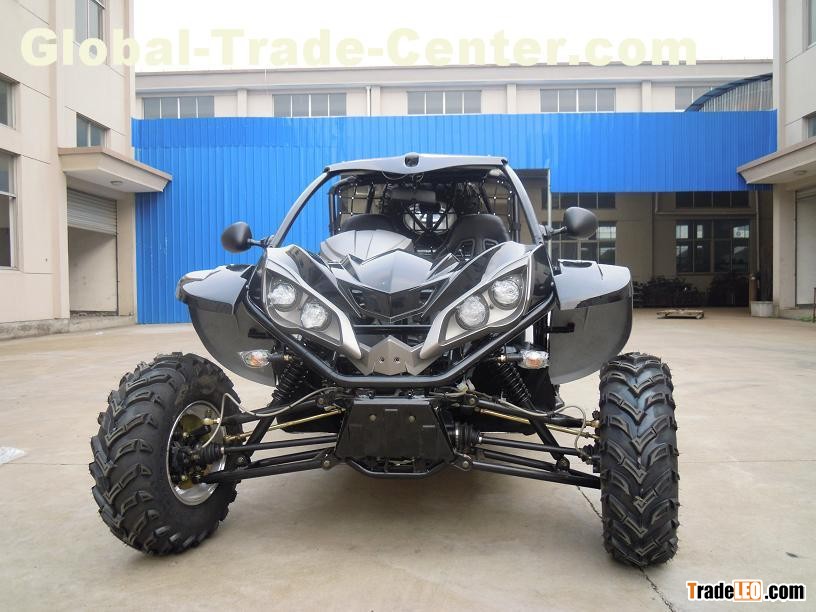

| LK600 Go Kart/Buggy Specification | ||||
| 1 | Vehicle type | LK600 | ||
| 2 | Certificate Number | EEC-e9*2002/24*0292*00 | ||
| 3 | Patent Number | 000 936 026 - 0001 | ||
| 4 | Length*Width*Height,mm | 3035*1685*1465mm | ||
| 5 | Wheel base,mm | 2400mm | ||
| 6 | Track,mm | a | Front | 1454mm |
| b | Rear | 1387mm | ||
| 7 | Ground clearance,mm | 320mm | ||
| 8 | Brakes (front/rear) | Hydraulic Disc, Foot Control | ||
| 9 | Dry weight,kg | 398kg | ||
| 10 | Minimum turning radius,m | 4.0m | ||
| 11 | Maximum,km/h | 95km/h | ||
| 12 | Engine | a | Model | CF196 |
| b | Type | Liquid cooled, single cylinder, 4-stoke.4-valves.SOHC | ||
| c | Displacement,ml | 593.2ml | ||
| d | Bore,stroke,mm | 96X82mm | ||
| e | Compression | 10:01 | ||
| f | Rated power(Speed) Kw(r/min) | 28kw or 6300rpm | ||
| g | Maximum torque(Speed) Nw(r/min) | 46.9Nm or 5500rpm | ||
| 13 | Starting | Electric | ||
| 14 | Driving | Shaft | ||
| 15 | Clutch | Automatic, Centrifugal, Dry, Shoe Type | ||
| 16 | Ignition | CDI | ||
| 17 | Battery | 12V 18AH | ||
| 18 | Tank capacity,L | 20L | ||
| 19 | Tires(off road) | a | Front | 25x 8-12 |
| b | Rear | 25x10-12 | ||
| 20 | Warranty | Within 8000km drive | ||
| 21 | Body colours | Orange, Green.Red,Black,Yellow | ||
| 22 | NW/GW: | 500kg/540kg | ||
| 23 | Carton Measurement (L xWx H) in mm: 2830x1645x867mm | |||
| 24 | Container Load | 20' GP FCL: 4 pcs | ||
| 40' HQ FCL : 12pcs | ||||
| 25 | Minimum Order Quantity: | 4 pcs | ||
| 26 | Manufacturer: Ningbo Luck Vehicle Co., Ltd |
