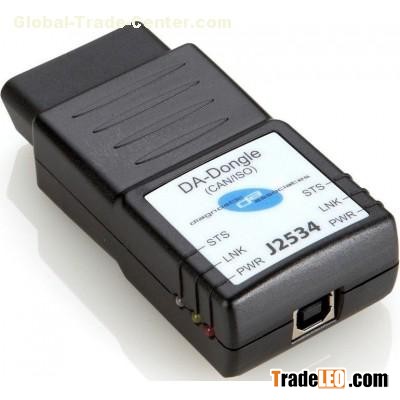

DA-Dongle J2534

DA-Dongle J2534 for Jaguar & Land Rover

Note:

Update by CD or by given download link, on-line updating is not available

Computer requirement: 4 nuclear WIN7 or XP 32-bit systems, More than 20GB of Hard Disk partition C.

DA-Dongle J2534 Description:

The DA-Dongle J2534 is a low cost high-performance pass-thru (SAE J2534) vehicle interface. This unit connects directly to the vehicle OBDII (Diagnostic)connector; it then connects to any laptop via a USB 2.0 cable. once the J2534 Driver files are loaded, this product will allow normal operation with OEM compliant J2534 diagnostic applications. This device supports CAN, FT CAN, and ISO protocols

DA-Dongle J2534 Overview:

1. JLR approved device
2. Replacement for JLR IDS/SDD VCM
3. Covers CAN, ISO9141 vehicle networks
4. Most cost effective pass-thru VCI device
5. Best suited for current and future vehicles
6. 12ft USB cable as standard included
7. Easy to update for J2534 new functionality updates

What does the DA-Dongle J2534 do

The DA-Dongle J2534 connects directly to the vehicle OBDII ( diagnostic ) connector and then to a laptop via a USB cable for use with IDS/SDD. once the J2534 DLL files are loaded, this product will allow normal operation with the JLR IDS/SDD diagnostic tool.

The device is designed as a replacement pass-through vehicle communications device that can be used for the majority of the JLR IDS/SDD diagnostic application. only SCP communication are not possible with this device.

The DA-Dongle J2534 device is simple and easy to use.

1. Download the latest J2534 DLL software files from our  DVD and install these on the IDS/SDD laptop.
2. Connect the J2534 device to the vehicle OBD II connector ( the device powers from the vehicle)
3. Connect the 12rg USB cable to the J2534 device and the other end to the IDS/SDD laptop.
4. The red vehicle power (PWR) LED will illuminate to show that the device is powered.
5. During communication with the vehicle, the status (STS) LED will flash green.
6. The device interacts with the IDS/SDD diagnostic tool in the same way as th existing VCM.

DA-Dongle Please Note

After installation of the DA Software Update Tool you need to connect your DA device to your PC via the USB cable BEFORE you run the DA Software Update Tool for the first time. This is necessary to complete the device driver installation.

DA-Dongle System Requirements:

    Windows XP SP2 & SP3
    Windows Vista SP1
    Windows 7

DA-Dongle Package including:

1pc x DA-Dongle J2534
1pc x Latest version software CD
