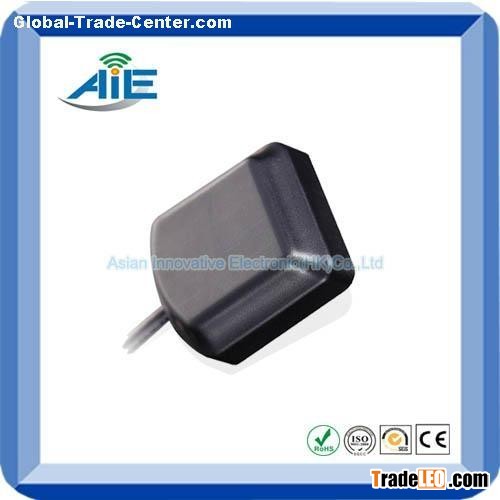

Item Specifications Antenna model AIE-ANTGPS-C09 Antenna Center Frequency 1575.42±1MHz Band Width CF±5MHz Polarization RHCP Gain 3dBic（Zenith） V.S.W.R ＜1.5 Impendance 50Ω Axial Ratio 3dB（max） Dimension 49*39*15mm LNA Gain 26±2dB Noise Figure ＜1.3 Filter Insertion Loss ＜3dB Ex-band Attenuation 12dB@CF+50MHz/16dB@CF-50MHz Supply Voltage 2.2~5V DC Current Consumption 10~26mA V.S.W.R ＜2.0 Mechanical Cable RG174 Connector SMA/MCX/FAKRA or others Radome Material ABS Mounting Method Magnet Environmental Operating Temperature -40℃~+85℃ Relative Humidity Up to 95% Ingress Protection IP67 Vibration 10 to 55Hz with 1.5mm amplitude 2hours Environmentally Friendly ROHS Compliant Price Terms︰ EX-WORK Payment Terms︰ TT/WU/PAYPAL Packing︰ 100PCS/CARTON Lead Time︰ 5-7 DAYS AFTER PAYMENT SKU︰ 0 custom_attr1︰ Beautiful appearance and stable performance custom_attr2︰ Magnetic mounting custom_attr3︰ Joint: Gold
