Brand:TRONIX
Model:TLG7183
MOQ:500 Pieces

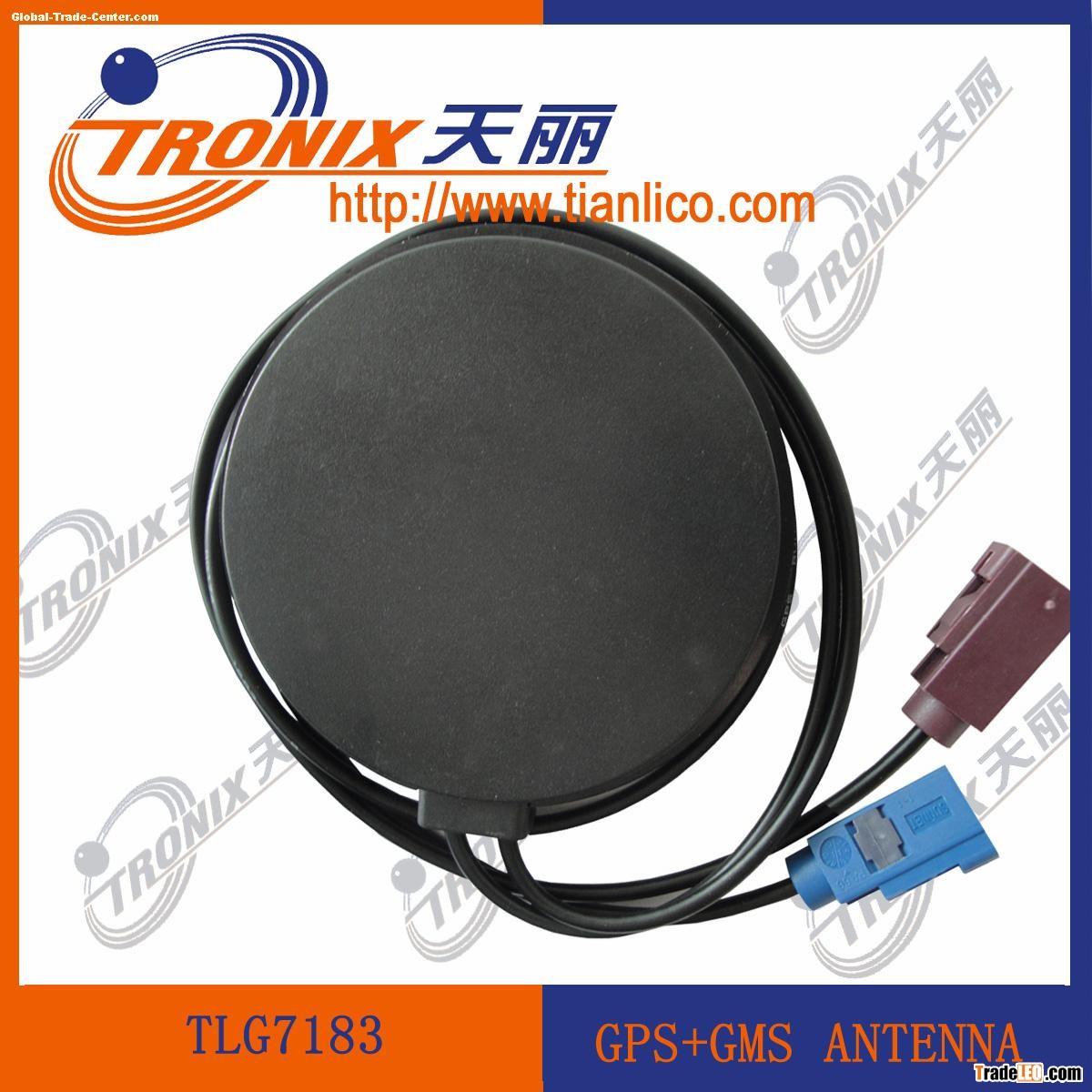

(Professional manufacturer)Car GPS+GSM combination antenna /Car amplifier antenna /Car antennas
| Item: TLG7183 | Specifications | ||
| GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±1MHz |
| Band Width | CF±5MHz | ||
| Polarization | RHCP | ||
| Gain | 5dBic(Zenith) | ||
| V.S.W.R | <1.5 | ||
| Impendance | 50Ω | ||
| Axial Ratio | 3dB(max) | ||
| LNA | Gain | 28±2dBi | |
| Noise Figure | <1.5 | ||
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | ||
| V.S.W.R | <2.0 | ||
| Supply Voltage | 2.2~5V DC | ||
| Current Consumption | 5~15mA | ||
| GSM Antenna | Frequency Range | 824~960MHz/1710~2170MHz | |
| V.S.W.R(min) | <2.5 | ||
| Polarization | Linear | ||
| Gain | 2dBi | ||
| Impendance | 50Ω | ||
| Mechanical | Cable | RG174 | |
| Connector | SMA/MCX/FAKRA or others | ||
| Radome Material | ABS | ||
| Mounting Method | Adhesive | ||
| Environmental | Operating Temperature | -40°C~+85°C | |
| Relative Humidity | Up to 95% | ||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
| Environmentally Friendly | ROHS Compliant | ||
Optional Connector
Our Product Range
Brief introduction of Tian Li Auto Parts and Accessories Co., Ltd.
TianLi Auto Parts and Accessories Co., Ltd. is a professional manufacturer of car antenna in
Guangdong, China, established in 2002, we have been in this field for about 10 years. Our main products include car AM/FM antenna, mobile TV car antenna, GPS car antenna, gsm car antenna,multiband car antenna, TV+FM+CB car antenna, GPS+GSM+WIFI car antenna, GPS+GSM+FM car antenna, decorative car antenna, shark fin car antenna, Sirius car antenna, active car antenna, passive car antenna, coaxial cables and car antenna accessories, etc.
Your particular models, ODM and OEM projects are welcome!
