Brand:TRONIX
Model:TLB4540
MOQ:500 Pieces

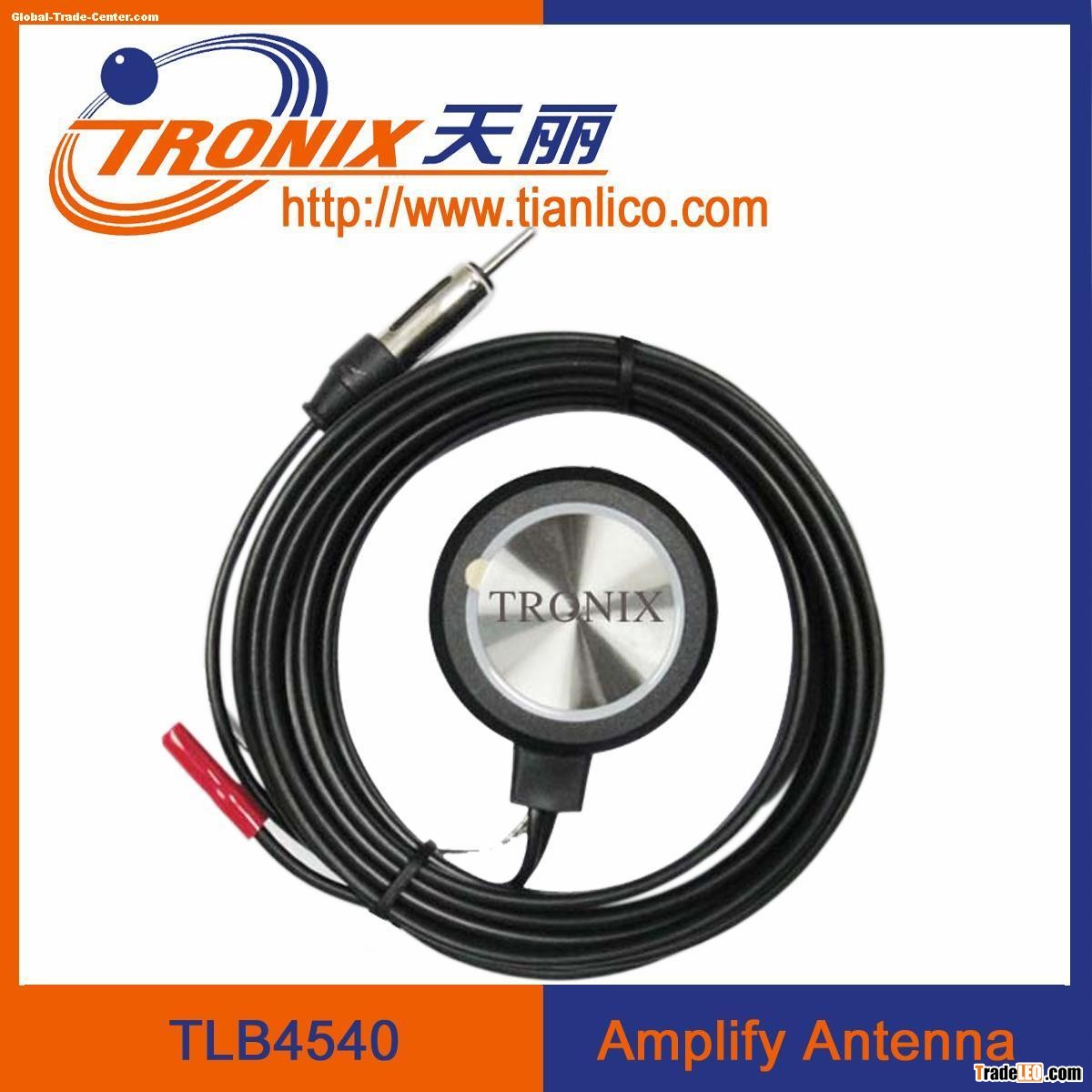

Electronic amplifier car antenna/Car am/fm radio antenna
Spesification: TLB4540
| 1. Adhesive active windscreen antenna for radio reception |
| 2.Working Voltage: 9V~16V |
| 3. Amplify Gain:AM: -4dB±3dB FM: 5dB±3dB |
| 4.Coaxial Cable:RG178 , Cable Length:2905mm |
| 5.Connector: Motorola connector, Power lead with terminal are available |
| 6.Fit Car: Universal type |
Performance parameters:
1.Type: AM/FM antenna
2.Frequency: 520KHz~1710KHz (AM) 87.5MHz~108MHz (FM)
3.Working Voltage: DC 10.5V~16V
4.Working current: 10~40mA
5.Rated Voltage: DC 13.2V
6.Rated current: 15mA~25mA
7.Output gain: AM: 10dB±3dB FM: 13dB±3dB
8.Output impedence:75Ω
9.Noise Factor: 3.0dB MAX
10.Intermodulation strength: >50dBm
11.Wire specification: 3200±20mm
12.Cable Length: 3200±20mm
13.Insulating resistance: DC500V > 100MΩ
14.Double line tensile strength should be >20KG
15.Male plug riveting strength ≥8kgf
16.Plug efforts:4±2kgf
17.Working temperature:-30°C~+80°C
18.Storage temperature:-40°C~+90°C
Other amplifier electronic antenna
Main products: Car AM/FM antenna, Car tv antenna, Car CB antenna, Car decorative antenna, Car antenna accessories,Car extension cable antenna, Car replacement mast
Brief introduction of Tian Li Auto Accessory Co., Ltd.
TIAN LI founded in 2002, engaging in the manufacturing and designing all kinds of Car Antennas, now TIAN LI is reputed around the world for its high-quality products, competitive prices and best services.Our main products includ car AM/FM antenna, mobile TV car antenna, GPS car antenna, gsm car antenna, multiband car antenna, TV+FM+CB car antenna, GPS+GSM+WIFI car antenna, GPS+GSM+FM car antenna, decorative car antenna, shark fin car antenna, Sirius car antenna, active car antenna, passive car antenna, coaxial cables and car antenna accessories, etc.Your particular models, ODM and OEM projects are welcome.
If you are intersted in our product, please feel free to contact us. We sincerely welcome cooperation with prospectives clients.
