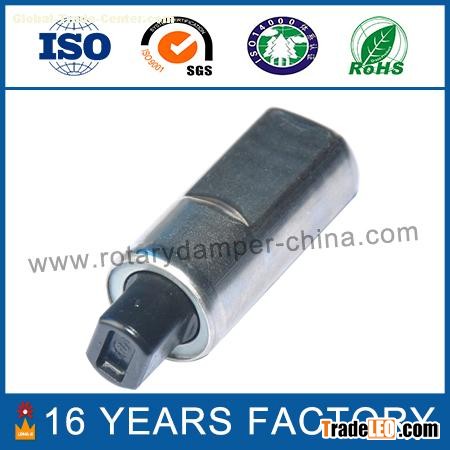

A. Damping torque: 20-60kgf.cm

Note:(1)Provide customized torque by changing viscosity of the damper grease

     (2)The nominal torque is measured value under temperature of 23℃，humidity of 80% when standard load falls off to 15°every second.

B. Damping direction: right or left(CCW/CW)

C. Construction size: Ø 20 mm

D. Operating temperature range: -20 °C to +70 °C

E. Rotation angle max. 110°

F.Outer body: Stainless steel

G. Shaft: POM

H.Damper oil: Silicone oil
