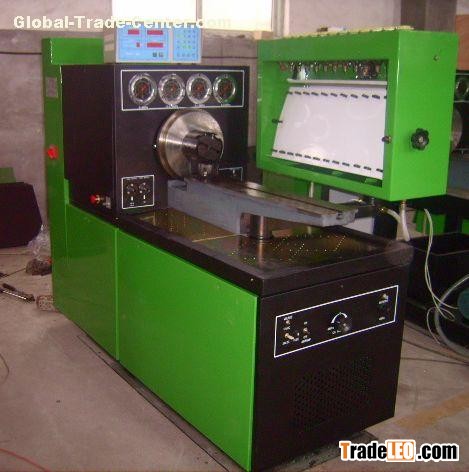

12PSB-HTD Diesel Fuel Pump Test Bench

FEATURES

1. Primary motor frequency changing speed

2. Large output torque, small fall speed value, high precision measurement

3. Ten kind of rotation speed presetting

4. Digital display of rotation speed, counting, temperature

5. Automatic control of fuel temperature

6. Positive and negative system with air resource

7. D.C.Supply 12V,24V

8. Protection system of over pressure, over load and over heat

FUNCTIONS

1. Test fuel supply quantity and uniformity in every cylinder

2. Test fuel supply dot and space angle of fuel injection pump

3. Test and adjust the performance of speed governor

4. Test the performance of distributor pump

5. Test the performance of press compensator

6. Test the fuel back quantity of distributor pump

7. Test the performance of electromagnetic valve in distributor pump

8. Test the inner pressure of distributor pump under various regulated rotation speed

9. Test advance angle(optional)

10. Test the sealing performance of fuel injection pump

11. Test rack travel(optional)

PARAMETERS

1.Rotation speed:0-4000 rpm/min

2. Fuel Tank volume: value="60" tcsc="0" unitname="l" w:st="on">60L

3. Automatic control of fuel temperature: 40±value="2" tcsc="0" unitname="℃" w:st="on">2℃

4. Test fuel filtering precision: 5µ

5. D.C. supply: DC12V/24V

6. Fuel supply pressure:

Low pressure: 0-0.4MPA

High pressure: 0-4MPA

7. Air pressure: nth="12" w:st="on" year="1899">0.0.3MPA

8. Power supply: 380V-three phase or 220V-three/one phase

9. Flywheel inertia: value="0.8" tcsc="0" unitname="kg" w:st="on">0.8KG•M²

10. Center height: value="125" tcsc="0" unitname="mm" w:st="on">125MM

11. Output power: 5.5KW,7.5KW,11KW,15KW or negotiation

12. Size: 2350x1230xvalue="1850" tcsc="0" unitname="mm" w:st="on">1850mm

13. Weight (kg):value="1200" tcsc="0" unitname="kg" w:st="on">1200kg
