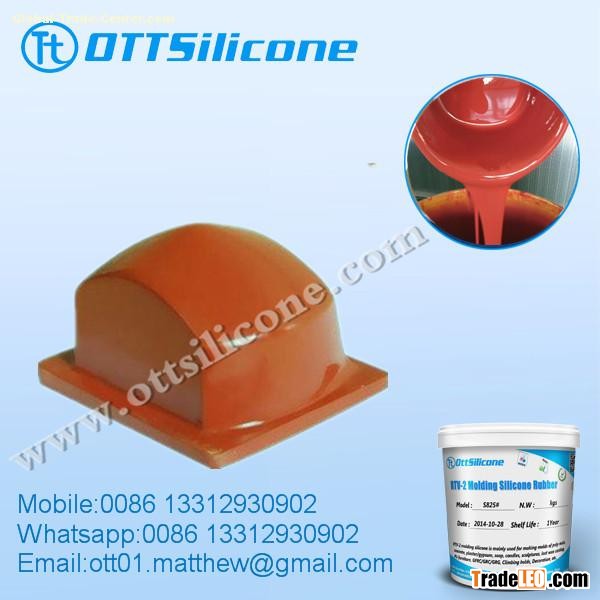

Pad Printing Silicone Rubber Product Description:

Pad Printing Silicone Rubber is a double-component silicone rubber, and can be vulcanized in room temperature. It is excellent applied for surface printing of pads making of perfect irregular patterns on plastics toys, electronic toys, trademarks, keyboards, electroplating etc.

It has good resistance to wearing, no distortion, no leakage and good ink transfer.

Pad printing silicone rubber is mainly applicable to the printing of irregular patterns on plastic toys,electroplating products,electronic toys,trademarks,artwork gifts and stationery etc.

Pad Printing Silicone Rubber Product Features:

1. Fantastic printing effects, without any impurity

2. Friction resistance

3. Perfect resilience

4. Optically clear

5. heat-conducting.

6. High resistance to high temperature and aging(resist -60°C to 250°C)

Pad Printing Silicone Rubber Operation Method:

1. Uniformly stir the printing silicone rubber for 5-10 minutes in the package barrel

before use.

2. Clean the mold with detergent, and dry up the mold by a piece of cloth or an air

gun and then coat the mold with a layer of release agent.

3. The normal proportion between the printing silicone and si-oil depends on the

requirements of the customers. If pattern is too big, a soft silicon pad is needed and

the amount of si-oil is increased. Contrarily, if a silicon pad with high hardness is

needed, the silicone oil should be added less or not. The appropriate hardness of

general pad printing silicone rubber is 15A~-25 A; if too much silicone oil is added,

the silicon pad is so soft that the printing times is limited, thereby bringing about

abrasion intolerance, solvent intolerance and aging.

Pad Printing Silicone Rubber Technical data:

Model Number: Y230, Y235,

Notes: The data are based on the operation under room temperature of 25 ℃.

Item: OTT-Y230

Mixing ratio: 9:1

Color: Red/White

Hardness: 30±2

Viscosity (mPa.s): 10000±3000

Working Time (25℃): 10-40mins

Curing Time (25℃): 1-6 h

Tear-Strength (kN/m):≥25

Tensile- Strength (Mpa):≥5.5

Elogation (%):≥500

Shrinkage(%):≤0.1

Shelf life for Pad Printing Silicone Rubber:

12-18 months when stored in a dry&cool place under the room temperature 25 degree.

Storage, Transportation for Pad Printing Silicone Rubber:

1.The products should be deposited in a clean, ventilating and shade place.

2. The products are non-dangerous goods.

3. Avoid skin and eyes contacting with the curing agent in processing.

4. once exposed, immediately wash with certain detergent and water. If splash into eyes, should wash with flowing water at least 15 minutes and consult a doctor.
