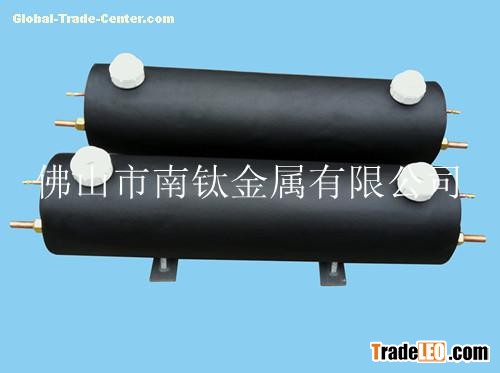

Horizontal swimming pool titanium heat exchanger of PVC shell

Specifications:

12-20HP

·Heating capacity: 40kW,52.5KW,70KW

·PVC shell for water (OD x H): 315 x 900mm(1200mm,1500mm)

·Titanium tube for refrigerant (OD x H): Φ19 x 0.6mm x 48m(60m,80m)

·Water inlet and outlet:DN40 PVC piston

·Refrigerant inlet and outlet: Φ25 and Φ32mm copper tube

Working condition:

·Water temperature: within 45°C

·Water pressure for testing: 5bar

·Gas pressure for testing: 35bar

Description:

·Water side: with high pressure resistance PVC shell tube for body and PVC plate for up and down cover

·Green material: pass SGS and RoHS, safe for environment

·Refrigerant side: with titanium tube bending into coil

·With strong anti-corrosion

·Widely used in the sea water and some chemical acid

·Can solve the problem of the corrosion of the copper material

·Surface: not easy for oxidation

·Hard to dirty don't need to worry about its clean tighten between coil and coil by the nylon cable ties so can reduce the moving
