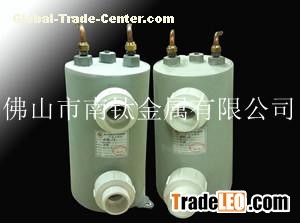

Specifications:

·Heating capacity: 10kW

·PVC shell for water (OD x H): 200 x 500mm

·Titanium tube for refrigerant (OD x H): 19 x 0.6mm x 20.5circle.

·Water inlet and outlet:DN40 PVC piston

·Refrigerant inlet and outlet: 12.7 and 19mm PVC connector

Working condition:

·Water temperature: within 30°C

·Water pressure for testing: 0.4MPa

·Gas pressure for testing: 3.0MPa

Description:

·Water side: with high pressure resistance PVC shell tube for body and PVC plate for up and down cover

·Green material: pass SGS and RoHS, safe for environment

·Refrigerant side: with titanium tube bending into coil

·With strong anti-corrosion

·Widely used in the sea water and some chemical acid

·Can solve the problem of the corrosion of the copper material

·Surface: not easy for oxidation

·Hard to dirty don't need to worry about its clean tighten between coil and coil by the nylon cable ties so can reduce the moving
