Specifications:

·Heating capacity: 10kW

·Stainless steel shell for water (OD x H): 250 x 600mm

·Titanium tube for refrigerant (OD x H): 19 x 0.6mm x 16m.

·Water inlet and outlet:DN40

·Refrigerant inlet and outlet: 12.7 and 19mm

Working condition:

·Water temperature: within70°C

·Water pressure for testing: 4.0MPa

·Gas pressure for testing: 3.0MPa

Description:

1.inside the heat exchanger is bending by the screw titanium tub which has strong anti-corrosion .and using the screw titanium tub can make the area of heat exchange become smaller.but the effect of heat exchange will the same with the pure tub

2.outside is welded by the 304 stainless steel plate.the metal can has strong the heat resistance or the pressure resistance

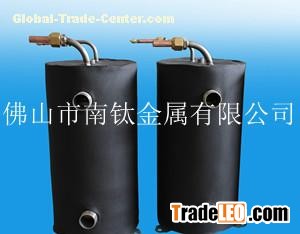

3.the picture below is just the power of 5HP so we can produce according your drawing ,we also can design according to your request
