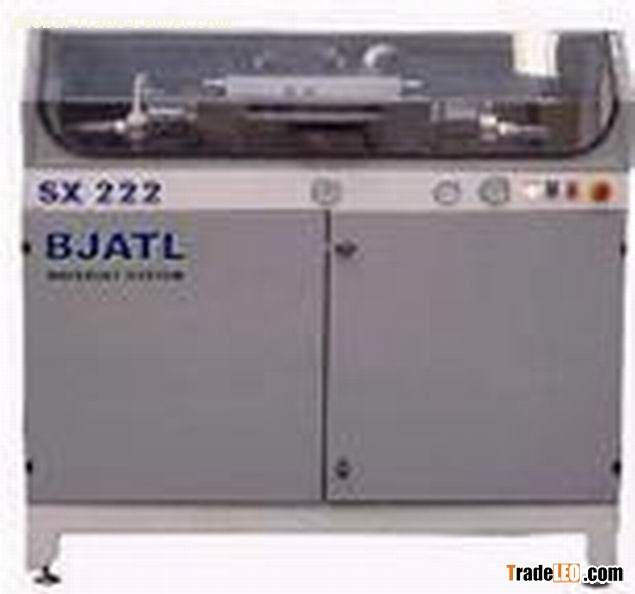

VHP PUMPS ATL2-22

（power) 22Kw/30HP

（Unladen weigh）1000KG

(Length)1500 mm

(Width) 900 mm

(Height) 1450 mm

(Tank capacity) 200 L

(Recommended oil) ISO 68

(Maximum flow rate) 2.6 L/min

(Maximum working pressure)4000bar,

(normal working pressure)3500bar

(nozzles)0.25mm
ATL 1-7.5(10Hp) PUMPS 为水切割/水刀系统提供0.15mm喷嘴，4000 bar压力超高压水射流, 主要适应与纯水切割要求, 如纸制品, 皮革以及非金属薄片精密切割等;Can feed aф0.15 mm nozzle /4000 Bars for water jet cutting applications

?ATL 1-7.5 PUMPS 超高压泵 功率（power)7.5Kw/10HP 重量（Unladen weigh）300KG 长(Length)1000 mm 宽(Width) 700 mm 高(Height) 1000 mm 油箱容积(Tank capacity) 60 L 液压油(Recommended oil) ISO 68 流量(Maximum flow rate)0.8 L/min 设计压力(Maximum working pressure)4000bar, 工作压力(normal working pressure)3500bar 喷嘴规格(nozzles)0.12mm

ATL 2-45 PUMPS 超高压泵 功率（power)45Kw/60HP 重量（Unladen weigh）1100KG 长(Length)1500 mm 宽(Width) 900 mm 高(Height) 1450 mm 油箱容积(Tank capacity) 200 L 液压油(Recommended oil) ISO 68 流量(Maximum flow rate)3.6 L/min 设计压力(Maximum working pressure)4000bar, 工作压力(normal working pressure)3500bar 喷嘴规格(nozzles)0.40mm

VHP PUMP ATL1-7.5 and ATL1-15 are designed for light industry; with the small size and power, high water pressure, small diameter of jet distract, sharp and quick of cutting, it can be used in three-dimensional
station if equipped with robot, also used in plane station equipped with digital ***** cutting machine can feed a nozzle with Φ0.15mm andΦ***** equipment designed to apply in pure water cutting.
