XINAO organic fertilizer machine China

1.Introduction

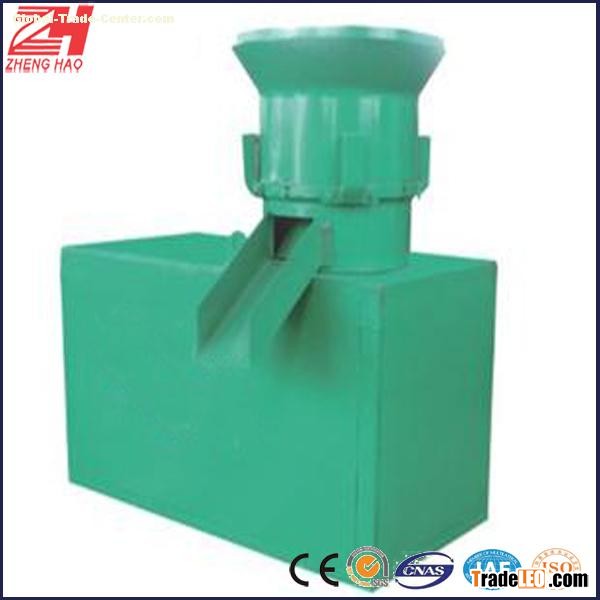

Organic fertilizer special granulator is agricultural machinery research institute use years compound fertilizer processing equipment design, production experience developed in the latest technology products, has obtained the country practical patent. It used to all kinds of organic matter after fermentation for granulation, break through the conventional organic prilling, before granulation need not to dry and crush the raw materials, it can direct burdening to work out cylindrical grain, can save a lot of energy.

2.Characteristics

1) The product pellet is cylindrical.

2) The organic content can be high to 100%, make pure organic granulate.

3) Production is massy, It can sieve directly after granulation to reduce the energy consumption of drying.

4) After fermentation organics don’t need to dry, moisture of the raw material can be in 20% - 40%

3.Working principle

Pelleting machine's power provided by the gear motor.The motor and pelleting machine transmission components connected by coupling.After transmission components, the motor will slow down to the expected standard speed of 144 r/min , at the same time it pass power to pelleting machine spindle,which will drive the extrusion rollers and feed throwing tray. After the organic materials was poured into the granulation chamber, as the rotation of the extrusion roller, due to the effect of friction force, the material being roll extrusion, extrusion into strips from holes on the plate. On the feed throwing tray there is two knives cut material into organic fertilizer granular products, then the feed throwing tray throw the organic fertilizer granular products out from the discharging gate.

4.Usage

1: organic raw materials: after fermentation of animal manure all can produce, and adjustable length, diameter Φ 2mm - 10mm all can produce.

2: feed ingredients: toppings particles, particles, pure food particles, mixture can be production.

3: can also processing and pig, cattle, sheep, chicken, fish, goose, ducks and other poultry.

5.Technical parameter
