Rapid Grouting and Fixing of High Vibration Equipment Foundation-----HQGM Series

Huaqian® Rapid Hardened Epoxy Grout

Advantages:

·  Insulated

·  Anti-static

·  High Bond Strength

·  Excellent Toughness

·  The following data is tested in the condition of preheating, forming and curing at 23±2℃ and a relative humidity of 50±5%; The final listed data in each strength category is from tests after 7 days-forming and curing at 23±2℃, and 6 hours-accelerated curing at 60℃.

Compressive Strength: 2h≥20Mpa, 24h≥50Mpa, 3d≥65Mpa, 7d≥100 Mpa

Flexural Strength: 24h≥10Mpa, 3d≥15Mpa, 7d≥20Mpa

·  Long-term Chemical Resistant (acid-bases, salt, grease, etc)

·  Application Temperature: 5-32℃

·  Working Time ≥45min

Uses:

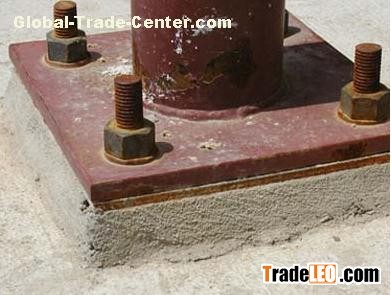

·  Installation and fixing of high vibration equipment foundation, such as for compressors, punching machines, grinders, ball mills, etc.

·  Grouting and fixing of equipment foundation - available for aggressive chemical environments

·  Grouting and fixing of equipment foundation - available for insulated and anti-static zone

Instructions:

·  Recommended mechanical mixing, first mix material B and material C, then pour material A together to evenly mix.

·  Strictly not to be used in damp base courses

·  Storage: ventilated dry conditions, waterproof, damp proof

·  Shelf life: 6 months

·  Packaging: Material A: 5kg/barrel, Material B: 15kg/barrel, Material C: 25kg/bag
