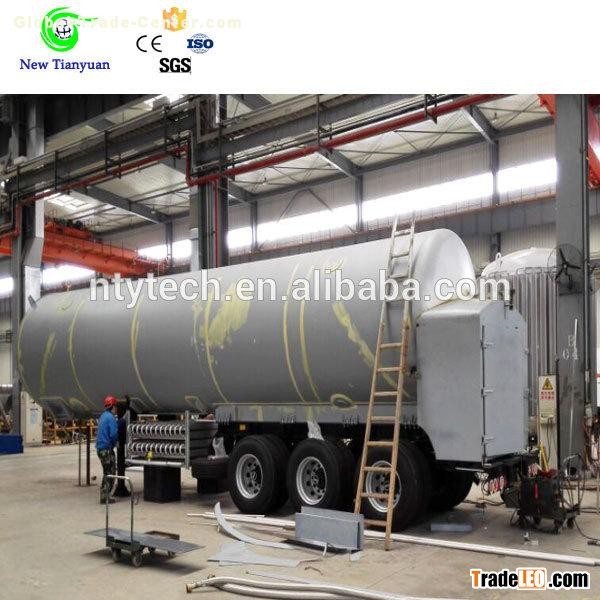

350M3/h Gas Supply 16M3 Volume Liquid Nitrogen/Oxygen Storage Tank

Full volume: 16m3

Effective volume: 14.4m3

Max. working pressure: 0.8MPa

Outer dimension: 8400*2365*2350MM

Weight: 9280KG

Evaporation rate: (LIN) 0.53%/d

Gas supply: 350M3/H

Insulation method: Pearlife

Our cryogenic tanks conform to GB150, GB18442 standard, are suitable for liquefied natural gas (LNG) etc. cryogenic liquid storage and application. Different volumes of tanks are available, and the maximum allowable working pressure is 0.8MPa and 1.2MPa.

We adopt advanced vacuum acquisition and maintenance technology to guarantee good insulation performance, long vacuum holding time and low maintenance cost.

External pipelines adopt modular design and prefabrication, which can be more compact and concise, and the user can get more reliable system, more convenient installation, maintenance and lower maintenance costs.
