Brand:Hong Ye
Model:HY302#
MOQ:200 Kilogram

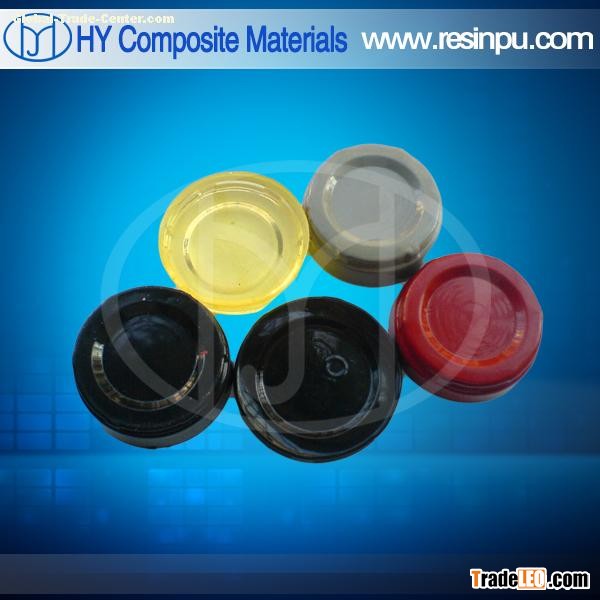

HY302# Epoxy Resin
Description
HY302# epoxy resin is composed of two components, resin and curing agent, with mix ratio of 4: 1 ( Resin : Cure Agent = 4: 1 ) , suitable for and amine curing agents or their additive , It can be cured at room temperature and heated Cured.
Application
Widely used in Painting such as for floor, coating ect , It can also used for electronic potting , such as
power transformer, reactor, CCL, insulating paint, electrical appliances and laminated products and other fields.
Technical Parameters
| Mix Ratio | Resin : Cure Agent = 4: 1 |
| Color | A: Light Yellow B: White |
| Appearance | no visible mechanical impurity / liquid Form |
| Epoxied Value (eq/100g) | 0.48—0.54 |
| Hydroponically Chlorine (eq/100g) | ≤300 |
| Weight Per Epoxy Equivalent (WPE) (g/eq) | 185-210 |
| Viscosity（mPa.S） | 10000-11000 |
| Volatile (%) | ≤1.8 |
Characteristics
＊Strong adhesion
＊Good chemical corrosion resistance
＊Thermal stability and electrical insulation.
＊ high toughness
＊Low Shrinkage
Operation instructions
1. Clean the surface of your products , make it clean and dry
2: evenly mixing the seasoning ratio A:B=4:1
3 Introduction resin mixing evenly to the electronic equipment inside, so that it can be estimated
Warm Tips :
1 It is forbidden to pour back the material into the Original packages even it is unused ;
2 construction to be dry and well ventilated space, Far away from the fire source;
3 stored in a cool dry place,Far away from light , and close the packages well .
4 Don’t contact with skin or eyes , Otherwise clean the skin with alcohol scrub, and wash with plenty of water and go to hospital in necessary
Package
20KG/drum package
220KG/drum package
Shelf Life
Six (6) months when stored under dry and cool place by original package under 25℃
