Ethylene tetrafluoroethylene, ETFE, a fluorine based plastic, was designed to have high corrosion resistance and strength over a wide temperature range. ETFE is a polymer, and its systematic name is poly(ethylene-co-tetrafluoroethylene). ETFE has a very high melting temperature, excellent chemical, electrical and high energy radiation resistance properties.

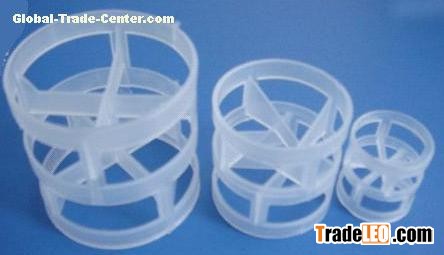

Please see the specification for PTFE Pall ring in the following:
| Item | Size | Bulk density (kg / m3) | Filling number | Specific surface area(M2/M3) | Voidage rate |
| 1 | f20*2*20 | 550 | 125000 | 267 | 0.928 |
| 2 | f25*2*25 | 450 | 60000 | 219 | 0.934 |
| 3 | f29*2*29 | 400 | 35000 | 193 | 0.936 |
| 4 | f38*2.5*38 | 370 | 15800 | 148 | 0.94 |
| 5 | f40*2*40 | 350 | 15100 | 138 | 0.942 |
| 6 | f42*3*42 | 550 | 14500 | 132 | 0.943 |
| 7 | f50*2*50 | 250 | 6800 | 108 | 0.945 |
| 8 | f50*3*50 | 350 | 6800 | 108 | 0.945 |
| 9 | f50*4*50 | 450 | 6800 | 108 | 0.945 |
| 10 | f50*5*50 | 580 | 6800 | 108 | 0.945 |
| 11 | f65*3*65 | 300 | 4600 | 84 | 0.948 |
| 12 | f65*5*65 | 500 | 4600 | 84 | 0.948 |
| 13 | f76*4*76 | 460 | 3000 | 72 | 0.95 |
PTFE is a fluorocarbon solid, as it is a high-molecular-weight compound consisting wholly of carbon and fluorine. PTFE is hydrophobic: neither water nor water-containing substances wet PTFE, as fluorocarbons demonstrate mitigated London dispersion forces due to the high electronegativity of fluorine. PTFE has one of the lowest coefficients of friction against any solid.
