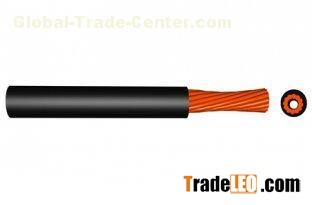

Silicon Rubber Insulated Wires for Leading Electric Motor
This wire is suitable for use for rated voltage up to including 1140V. The operating temperatures are 60180.
Product standard: Q/WZ10--2001
Specifications and Names
| Type | Designation | Main Usage |
| JHXG | Silicon rubber insulated wire for leading electric motor | For electric motor rated at AC1140 |
Main performance
1. Wires withstand a test of AC 50Hz 3.5kV 5min, after being immersed in the water.
2. Wires withstand a bending test.
3. Wires withstand a heating effect test.
Delivery lengths
Delivery lengths are not less than 50m, and short lengths not less than 5m are deliverable for wires with nominal cross-sectional areas of 35mm2 and under, while delivery lengths not less than 20m and short lengths not less than 2m are for those with nominal cross-sectional areas as over 35mm2.
