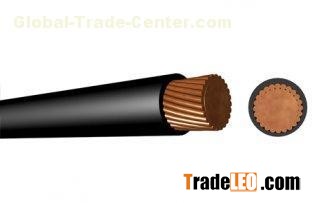

Copper conductor PVC / XLPE Insulated Copper Conductor Control Cable 450 / 750KV

• Product standard

This product is manufactured according to GB9330 and enterprise standards.

• Application

For system connection wire of control, signal, proteAction or measuring with rated voltage up to and including 450/750KV.

• Operating characteristics

Rated voltages U0/U: 450/750KV

Permissible Max. continuous operating temperature of conductor:

PVC insulated: 70; XLPE insulated: 90

Upon short circuit (Max. Duration time 5s) the Max.

Temperature of conductor not higher than:

PVC insulated: 160; XLPE insulated 250.

Ambient temperature of installation not less than 0

Preferred Permissible bending radium:

For non-armored cable, not less than 6 times of cable diameter;

For armored or copper-tape-screened cable, not less than 12 times of cable diameter;

For screened flexible cable, not less than 6 times of cable diameter.

• Type, designation and application

Type	Designation	Main applications
KVV/KYJV	Copper conductor PVC/XLPE insulated PVC sheathed control cable	For fixed-laying indoors, in cable duct or conduit
KVVP/KYJVP	Copper conductor XLPE/PVC insulated PVC sheathed braid screened  control cable	Contact Infomation Send Inquiry Company name:Hebei New Baofeng Wire & Cable Co.,Ltd Status:[Offline] [Send message] [Chat] Business contact:Zhang Zhongzhao (Ms.) Telphone: Mobile: Fax: Area: Caribbean Region-Bermuda Address:Jinghe Hi-tech Industrial Zone Zip:062450
