Brand:HOTECH
Model:HTC-CMS280
MOQ:500 Kilogram

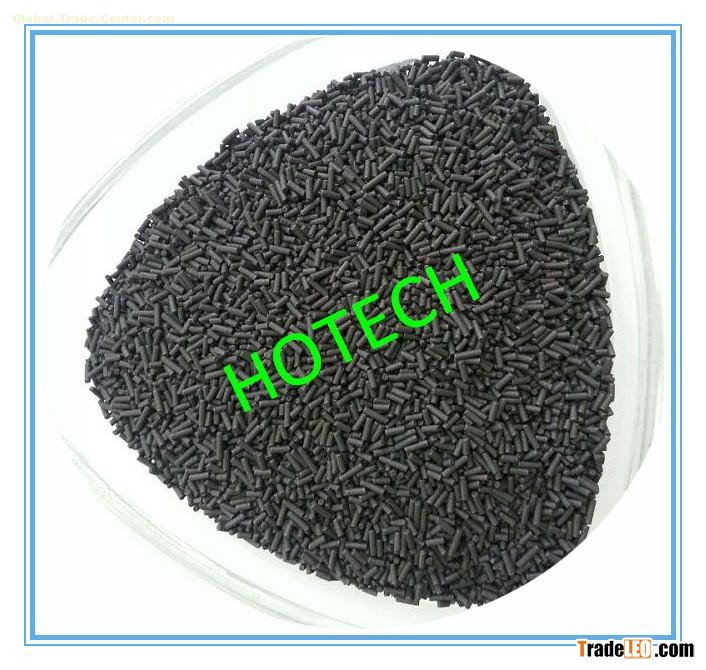

1-)What is Carbon Molecular Sieve
The main components of carbon molecular sieve carbon element in black cylindrical appearance,it is
a new types of absorbent as well as a non-polar carbon material.
Carbon moleuclar sieve for PSA gernerator to produce nitrogen used in petroleum,chemcial,glass,
metallurgy,electronics,food,coal,medicing and other fields.
2-) Carbon Molecular Sieve Work Theory.
Carbon molecular sieve adsorb oxygen and nitrogen selectively under the condition of compressure.
Oxygen and nitrogen moleculars in different diffusion rate (oxygen molecular diameter smaller
diffused faster than nitrogen molecular comparatively).
While the air though pressure swing adsorption facilites (PAS generator),oxygen molecular mostly
adsorbed by carbon molecular sieve,remained elements mostly nitrogen molecular.
Produce nitrogen,carbon molecular sieve as adsorbent by pressure sewing adsorption method know as
PSA nitrogen making.
3-) Carbon Molecular Sieve Advantages.
Nitrogen production in high-purity and high-recovery rate
Nitrogen production in low cost and low energy consuption
Nitrogen production in speed set-up and high capacity.
Carbon molecular sieve in high compressure resistance and long life time
4-) Carbon Molecular Sieve Technical Parameter
Decription: carbon molecular sieve
Aritcle No.: HTC-CMS280
Color:black
Shape:cylinder apperance
Diameter:1.3-1.8mm
Adsorption pressure: 0.8Mpa
Recycle time: 2*60s
Bulk density: 630-660g/L
Hardness:90-100N/Granule
| Nitrogen Purity (%) | Nitrogen Production (L/H*Kgs) | Recovery (%) |
| 99.5% | 240 | 45 |
| 99.9% | 150 | 35 |
| 99.95% | 130 | 30 |
| 99.99% | 105 | 28 |
5-) Carbon Molecular Sieve Packing Information.
20kgs/40kgs/75kgs plastic drum for option
Packages palletized in plastic pallet
20ft container could stuff 13 Tons carbon molecular sieve
40ft container could stuff 32 Tons carbon molecular sieve
6-) Carbon Molecular Sieve Storage
Herein would like to guarantee supplied carbon molecular sieve keep initial performance within 6 years if it is stored properly under dry and ventilated condition in original package or sealed vessl.
7-) Carbon Molecular Sieve Supplier Services:
Sufficient storkage ensure fast delivery
Pre-shipment test report for all shipment
Professional after-sell service team
24 Hours free line for technical information consultation
