Brand:UPSEN
Model:RT 1K-10KVA
MOQ:5 Pieces

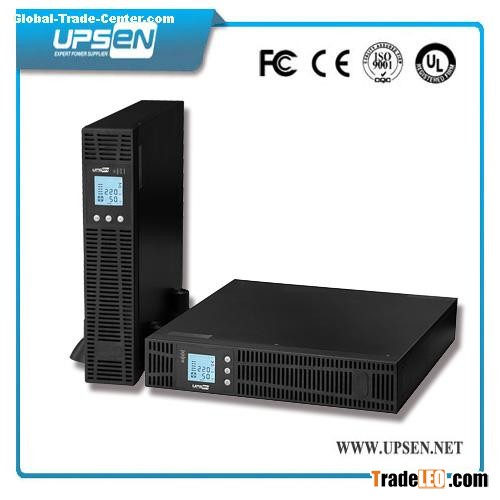

Rack mount 19" tower convertible online UPS with inside battery
High Frequency online UPS Rack Tower Star Series RT 1K-10KVA(1Ph in/1Ph out)
Key Features:
1:Full digital control (DSP)
2:Rack Mount - Tower Convertible
3:Comprehensive protection for the total unit
4:Input neutral and live wires reverse detection
5:Allowable start UPS by cold start or direct current start
6:Diverse options of accessories, intelligent management
7:Tower/Rack multi-configuration for flexible installation
8:Intelligent slot optional: USB /SNMP /Dry contact Board
9:Diverse options of accessories, intelligent management
10:Accurate pure sine wave output ;strong capacity of different load
11:Adopting high frequency full bridge topology for high steady performances
12:It provides the best power source guarantee for the load equipments for users
Applications
Servers,Office Equipment,Notebook Computer,Mobile Telephone,Printer,Display.Television,Video Recorder,Acoustics,DVD,VCD,Securities System, Fridge etc.
Technical Specification
| MODEL(RT Series) | RT1K | RT1KL | RT2K | RT2KL | RT3K | RT3KL | RT6KL | RT10KL | |
| Input | Rated Capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | 6KVA/4800W | 10KVA/8000W | |||
| Voltage | 90 ± 5 ~290 ± 5Vac | 176 ~ 276Vac | |||||||
| Current | 6A(max) | 12A(max) | 16A(max) | 31A(max) | 60A(max) | ||||
| Frequency | 40 ~ 60 Hz | ||||||||
| Power factor | Conformity EN60555-2(≥0.95) | ≥0.95(MAX) | |||||||
| Output | Voltage | 220Vac ( 1 ± 2%) | 220Vac ( 1 ± 1%) | ||||||
| Current | 4.55A | 9.1A | 13.6A | 27.3A | 54A | ||||
| Frequency | (50 ± 2)Hz | (50 ± 1)Hz | |||||||
| Power Factor | 0.8 lag | ||||||||
| Waveform | Sine Wave | ||||||||
| Waveform | Linear ≤ 7% when RCD 100% loading (Non-line) | ||||||||
| Distortion | Linear ≤ 3% when RCD 100% loading (line) | ||||||||
| Overload protection | 105%< <125% → 50s | 100%-125%, 1 minutes to | |||||||
| 125%< <150% → 25s | transfer to bypass; >150%, | ||||||||
| >150% → 300s | 100ms to transfer to bypass | ||||||||
| Transfer Time | Oms | ||||||||
| Type of Battery | Sealed lead acid maintenance-free | ||||||||
| External Battery Voltage | 3x7 Ah | 36Vdc | 6x7 Ah | 72Vdc | 8x7 Ah | 96Vdc | 192Vdc/240Vdc | ||
| Working | Operating | 0-40ºC | |||||||
| Environment | Temperatures(ºC) | ||||||||
| Relative | 0-90(%) | ||||||||
| Temperature(ºC) | |||||||||
| Altitude | <1500m | ||||||||
| Communication | 9pin D trpe comector (RS232) | ||||||||
| Size (WXDXH) mm | 482x450x88 | Standard Type (3U): 482x680x132.5 | 482x680x132.5 | ||||||
| Long Backup Type (2U): 482x450x88 | |||||||||
| Weight (kg) | 14.5 | 8 | 22 | 9.8 | 26 | 9.8 | 20 | 25 | |
