Brand:UPSEN
Model:GREEN STAR
MOQ:5 Pieces
Send Inquiry

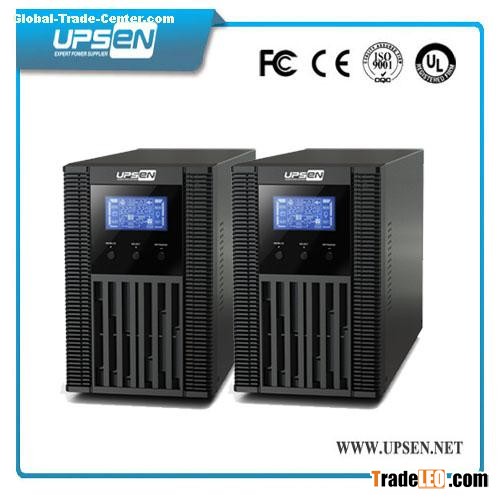

High-frequency online Double-conversion UPS with Generator Supportable
Model: High Frequency online UPS Queen Star Series 1K-3Kva (1ph in/1ph out)
Key Features:
1:High reliability DSP control
2:Environment Friendly And eco-designed
3:Active input power factor correction (PFC)
4:Single module LCD display
5:Intelligent RS232 communication port
6:Active Load Management
7:Advanced no-master-slave parallel technology (optional)
8:The load power factor is 0.8
9:Generator Supportable
10:Freely set the charge current
Applications:
Aeronaoutics,Astronautics,Electronic,Telecom,Army Technology,Securities System,Sensitive Electronic Equipment,Wind Power System,Production Equipment,Military etc.
Technical Specification
| MODEL | Q1K | Q1KL | Q2K | Q2KL | Q3K | Q3KL | |
| Rated capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | ||||
| Input | Voltage | 115 - 300Vac | |||||
| Frequency | 40-60Hz / 50-70Hz | ||||||
| Power factor | 0.99 | ||||||
| Output | Voltage | 220/230Vac(1±2%) | |||||
| Frequency | Synchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode) | ||||||
| On-load factor | 0.8 | ||||||
| Overload rating | 125% overload,1min | ||||||
| Battery | Type | Valve-control lead acid maintenance-free battery | |||||
| Back up time | > 11min (half load) | External | >11min (half load) | External | >11min (half load) | External | |
| Rated voltage | 36V | 72V | 96V | ||||
| Transfer time | 0 | ||||||
| Operating environment | Humidity: 20%-90%, Temperature:0oC-40oC | ||||||
| Size (WxDxH)mm | 350 x 144 x 229 | 424 x 190 x 328 | 424 x 190 x 328 | ||||
| Net Weight(kg) | 11.5 | 5.7 | 22.2 | 10 | 26.3 | 10 | |
| *Specification is subject to change without further notice | |||||||
