Brand:Helior
Model:001
MOQ:10 Pieces

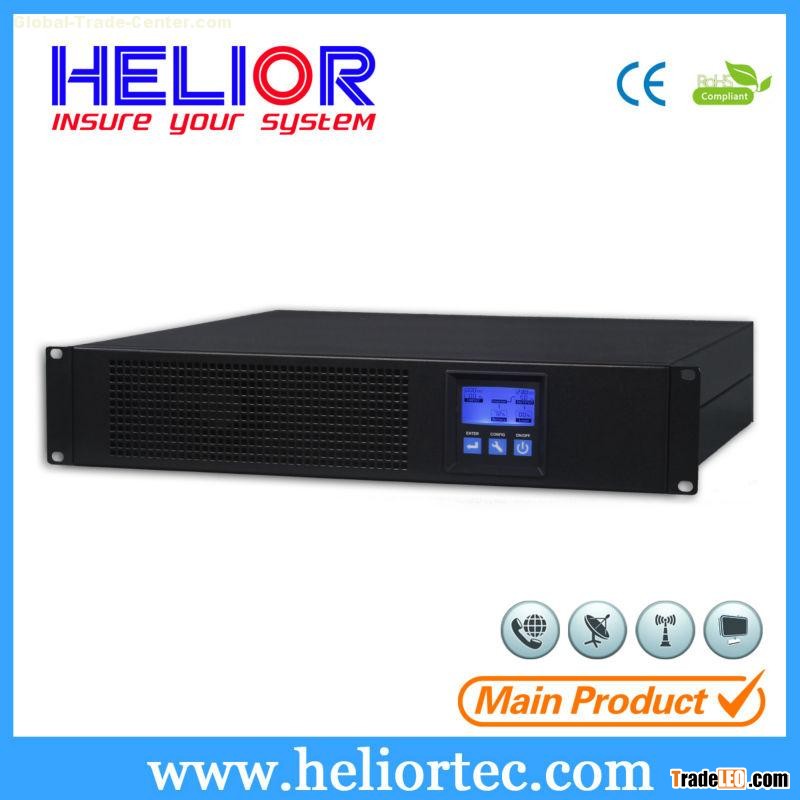

6000va 4200watt online energy saver ups (RM 1-6KVA)
Outstanding features:
1.Pure sine wave output online lcd ups power supply
2.Tower/Rack multi-configuration for flexible installation
3.Microprocessor control guarantees high reliability
4.Adopting high frequency full bridge topology for high steady performances
5.high input power factor correction online ups
6.Selectable various output range and operating mode
7.Cold start function online ups
8.Inbuilt static bypass enhance better protection for critical load
9.Built - in dry contact/RS-232/EPO communication port
10.SNMP allows for web-based remote or monitoring management
11.Optional USB communication port
12.Enable to extend runtime with scalable external battery pack
13.Overload,Short-circuit,and overheat protection
14.Hot-swappable battery design
15.Compact size with high over all efficiency
Technical specification
| Technical Specifications | |||||||||||
| Model | RM1KL | RM1KSL | RM2KL | RM2KSL | RM3KSL | RM4KSL | RM6KSL | ||||
| Power | 1KVA/700W | 2KVA/1400W | 3KVA/2100W | 4KVA/2800W | 6KVA/4200W | ||||||
| Input | Input system | Single phase& earth ground | |||||||||
| Rated voltage | 230VAC | ||||||||||
| Frequency | 50/60Hz +/-5 Hz(Auto sensing) | ||||||||||
| Power Factor | More than 0.98(full load) | ||||||||||
| Voltage range of bypass | 230VAC +/-10%(adjustable) | ||||||||||
| Output | Output System | Single phase & earth ground | |||||||||
| Rated voltage | 220/230/240 VAC | ||||||||||
| Power Factor | 0.7 | ||||||||||
| Voltage Precision | +/-1% | ||||||||||
| Normal mode | 44~55(adjustable) | ||||||||||
| Battery mode | 50+/-0.1Hz | ||||||||||
| Crest factor | 3 :1 | ||||||||||
|
| Charge current | 2A for internal batteries ;6A max(Adjustable) | |||||||||
| Backup Time | Dependent on the capacity of batteries | ||||||||||
| Backup Charge Time | Charger to 90% battery capacity in 3 hours(Standard) | ||||||||||
| Dependent on the capacity of external batteries(Long backup time) | |||||||||||
| Communicate & Interface | Interface port(s) | RS232+Dry contact (DB9)+USB(optional) | |||||||||
| Optional cards | SNMP Adaptor | ||||||||||
| LCD display | Information for load/Battery/Input/Output and Operating Mode | ||||||||||
| Audible alarm | Actively audible alarm for utility failed/battery low/overload condition | ||||||||||
| Silence switch | Yes | ||||||||||
| EPO | Yes | ||||||||||
| Physical | Installation | Rack & Tower(2-in-1)
| |||||||||
