Model

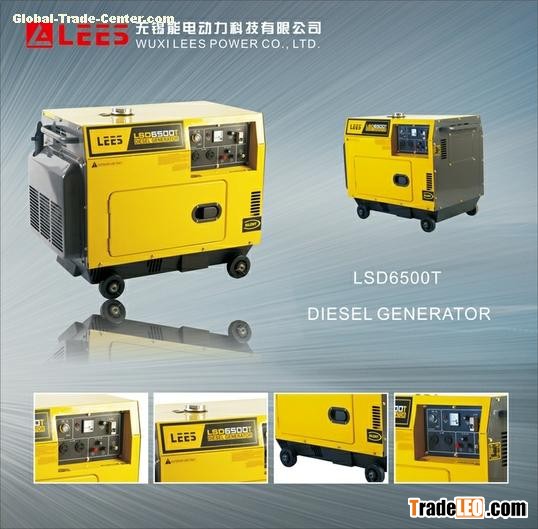

  LSD6500T

  Rated frequency (Hz)

  50

  Rated output     (kVA)

  4.5

  Max.output        (kVA)

  5.0

  Rated voltage  (V)

  115/230

  Rated current   (A)

  39.2/19.6

  Rated speed  (r/min)

  3000

 Alternator

  Power factor

  1.0

  Excitation mode

  Self-excitation and constant voltage(AVR)

  Pole number

  2

  Insulation Grade

  B

 Engine

  Engine Model

  LD186FA

  Engine Type

  vertical,  four-stroke

  Compression ratio

  19:1

  Rated power (kw)

  5.7/3000

  Lubrication system

  Mixed type(pressure+splash)

  Lube oil brand

  SAE10W30(above CD grade)

  Lube oil capacity (L)

  1.65

  Starting system

  Electric starter

  Starting motor capacity ( V-kW )

  12V  0.8kW

  Charging generator capacity ( V-A )

  12V  3A

  Battery capacity ( V-Ah )

  12V  36AH

  Fuel type

  0#(summer)-10#(winter)-35#(chillness)diesel

  Fuel consumption ( g/kW.h )

  275.1

Genset

  Panel Type

  General Panel

  Receptacle

  Two receptacles

  Noise level(7m)    dB(A)

  72

  Structure type

  Silent

  Fuel tank capacity (L)

  16

  Continous running time ( h )

  9.5

  Overall dimension:     L×W×H ( mm )

  912×532×740

  Net weight ( Kg )

  158
