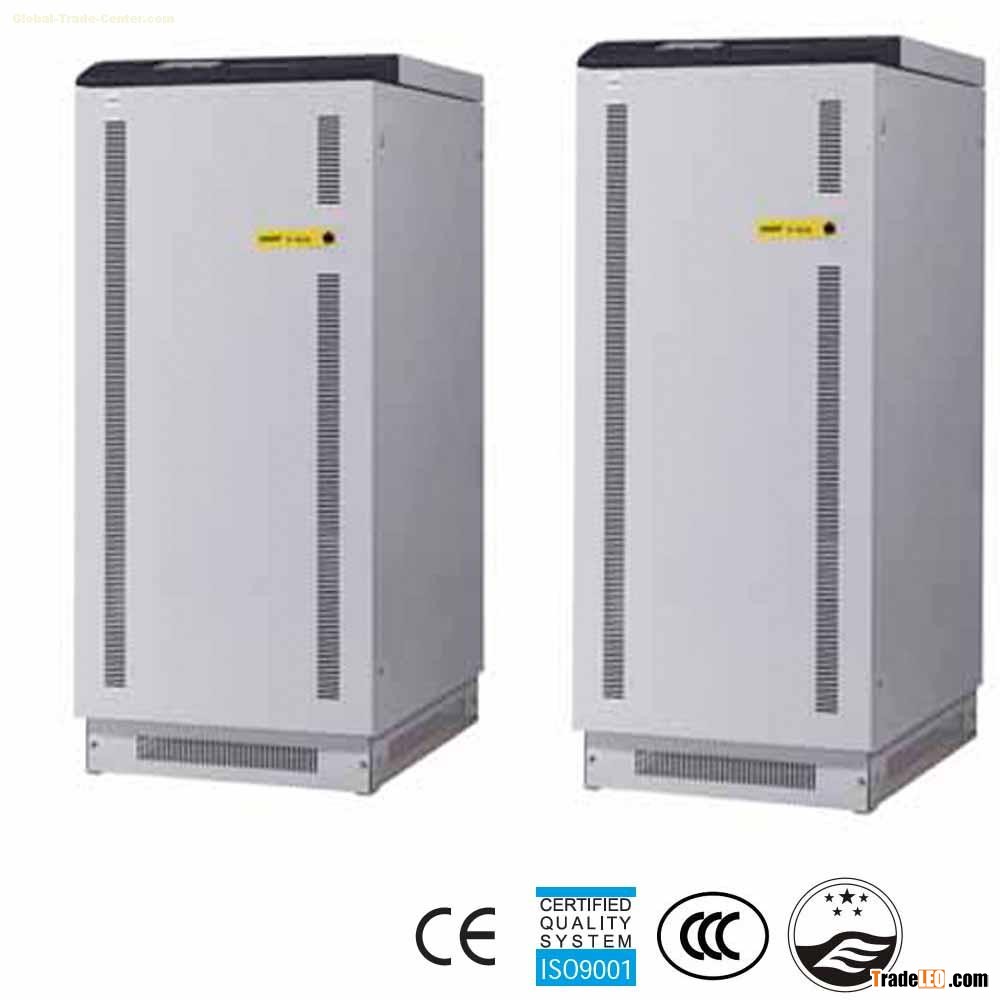

Hairf X5 series UPS is the dual transformation Of pure digital UPS with output isolation transformer.
As the stable, clean, and uninterrupted Power supply, its application field includes Telecom system, financial system, Satellite System, network system, medical system, Monitoring security system, and factory automation System, etc.

Hairf X5 series UPS adopts advanced IGBT Technique and featured as supply quality Power supply, high efficiency, less heat loss, Low noise, small size and long service life.
Modularized design reduces the mean time to Repair (MTTR) and make the maintenance work Easier. Advanced all-digital design of microprocessors Ensure a safe and reliable operation of The system.

QUALITY POWER SUPPLY
HAIRF X5 is an On-Line double conversion(VFI)UPS with filtered and stabilized sinusoidal output voltage. X5 is immune to the interferences on the electric power supply line as it has special input and output filters.

MAXIMUM RELIABILITY AND POWER AVAILABILITY
The digital control of the appliance considerably improves reliability, since a reduction in electronic components lowers the likelihood of breakdowns, . Digital control is provided by the microprocessor that, in the X5 series, controls all the internal parameters, thus increasing reliability and performance. In parallel connections. Digital control ensures balance of the currents, which generally change over time due to phenomena such as vibrations and temperature, between the UPS units and the exchange of information with no need for manual tuning.

HIGH EFFICIENCY
If required, the unit can work in ECO mode to increase efficiency up 98% and consequently reduce energy dissipation and costs. In this operating mode the mains is the priority source and the load is switched over to the inverter only when the mains characteristics exceed the preset limits.

UPS FOR INDUSTRIAL LOADS
X5 with its strong overload capability, output galvanic isolation and low harmonic current distortion, is the ideal solution for industrial applications.
Thanks to the high battery current, X5 Series is suitable to work with large battery banks as it can guarantee recharging in 10 hours as recommended by the battery manufacturer.

OPERATING FLEXIBILITY
X5 is an uninterruptible power supply with On-Ling double conversion technology that can also operate in line interactive mode. All power ratings of the X5 series can also be used as Frequency Converters 50 to 60 Hz and vice versa.

MIMIC PANEL
The mimic panel allows easy and intuitive operation of the UPS. It gives access to the most important parameters: Status and alarms, control commands, input, output, battery measurements(power, current, voltage, frequency and temperature)and settings. The X5 diagnostics system includes up to 128 alarms or messages allowing precise and detailed identification of any event.

MAXIMUM BATTERY CARE
The back feed protection device prevents any voltage back feed in the upstream distribution board, thus ensuring the safety of the maintenance personnel.

FRONT ACCESS
X5 has frontal access for all power and electronic components, even in those configurations with internal batteries, This reduces the floor space required and consequently reduces the installation costs.

ADVANCED COMMUNICATION
UPS Mon software displays the most important information such as the input and output voltage, the load applied, the remaining back-up time, etc., in the form of bar graphs. The software is able to provide information even in the event of a failure, in support of the fault diagnostics. The UPS Mon software can be used to program the automatic shutdown of all open systems in the event of a prolonged black out. X3 can also operate with a network agent for applications on LAN or WAN networks.

The UPS contains the following hardware interfaces:
@RS232 serial port,
@Dry contacts,
@EPO (Emergency Power Off)contact for UPS shutdown using the remote emergency button.
