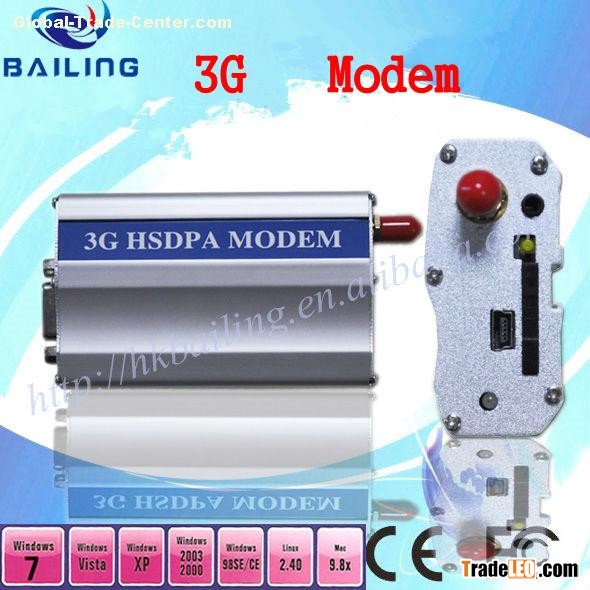

3G HSDPA Modem with GPS Function GPS Modem

UMTS Terminal, whatever supports the HSDPA standard

Technical data:

The SIM5218 series is a Multi-Band WCDMA/GSM/GPRS/EDGE module solution which supports WCDMA 384kbps for data transfer.

With abundant application capability like embedded LUA script, TCP/UDP/FTP/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.  Its unique camera/video call feature shall add value to security solutions. It is ideal for a  wide range of products including AMR, Gateway, Telematics, Tracking solution, Security solution and much more.

General features

SIM5218 ( Have GPS Function)

* SIM5218A: Tri band : UMTS/HSPA 850/1900/2100MHz

* SIM5218E: Tri band : UMTS/HSPA 900/1900/2100MHz

* SIM5218C: Single band : UMTS 2100MHz

* SIM5218J: Tri band : UMTS/HSPA 800/1900/2100MHz

* SIM5218A/E/C/J:  Quad band : GSM/GPRS/EDGE 850/900/1800/1900MHz

* GPRS multi-slot class 12
* EDGE multi-slot Class 12
* WCDMA 3GPP release 99
* Output power
       - UMTS 1900/850: 0.25W
       - UMTS 2100/900: 0.25W
       - GSM850/GSM900: 2W
       - DCS1800: 1W
       - PCS1900: 1W

* Control Via AT Commands
* Supply voltage range: 3.3V~ 4.2V
* Operation temperature range: -30 °C to +80°C
* Dimension:  36*26*4.7mm
* Weight:0.5kg

Support embedded script Language
* LUA script Language

Specifications  for  Data transfer
* WCDMA
         - Max.384Kbps(DL), Max.384Kbps(UL)
* EDGE
         - Max. 236.8Kbps(DL),Max.118Kbps(UL)
* GPRS
         - Max. 85.6Kbps(DL), Max.42.8Kbps(UL)
* CSD
         - GSM data rate 14.4Kbps
         -  WCDMA data rate 57.6Kbps

Specifications for SMS
* Point to point MO and MT
* Text and PDU mode

Specifications for CSD
* Support in GSM and WCDMA

Specifications for Network Identity and Time zone (NITZ)
* Support in GSM and WCDMA

Specifications for video call
* DTMF on H245
* Support standard WCDMA  64kbps(CS) Video call

Other features
* USB Driver for Microsoft Windows 2000/XP/Vista
* USB Driver for Linux 2.6.16
* Firmware update via USB
* MMS
* TCP/IP
* FTP/HTTP/HTTPS/SMTP/POP3
* FOTA
* USB Audio

Interfaces
* USB2.0
* UART
* USIM card
* ADC
* Digital Camera
* GPIO
* I2C
* Micro-SD card

SIM Card Slot:

Power Input Interface:

Accessory:

Details

Running enviroment
