Brand:BL
Model:BL32
MOQ:1 Pieces

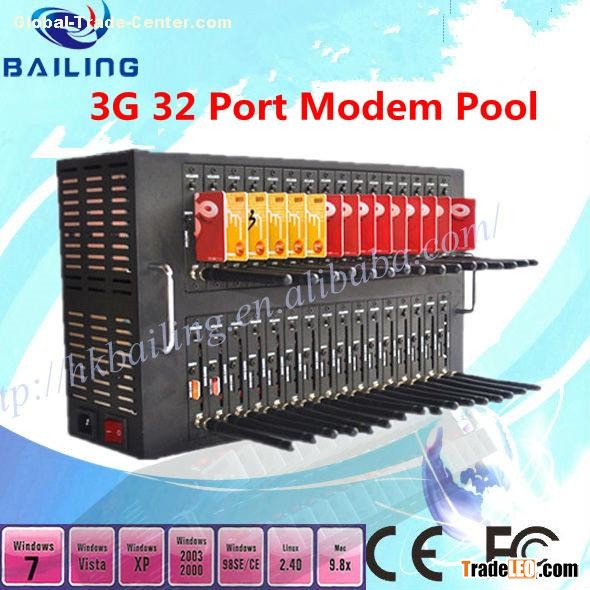

3G 32 Port Modem Pool for SMS MMS SMS Machine
Description:
The SIM5215 series is a Multi-Band WCDMA/GSM/GPRS/EDGE module solution which supports WCDMA 384kbps for data transfer.
Product Description:
1.3G 32 Port Modem Pool
2.USB interface
3.Send bulk SMS MMS
General features
* SIM5215A/SIM5216A/SIM5218A:
Dual-Band UMTS/HSDPA 850/1900MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
* SIM5215E/SIM5216E:
Dual-Band UMTS/HSDPA 900/2100MHz
Tri-Band GSM/GPRS/EDGE 850/900/1800MHz
* SIM5215J/SIM5216J :
Dual-Band UMTS/HSDPA 850(800)/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
* GPRS multi-slot class 12
* EDGE multi-slot Class 12
* WCDMA 3GPP release 99
* Output power
- UMTS 1900/850: 0.25W
- UMTS 2100/900: 0.25W
- GSM850/GSM900: 2W
- DCS1800: 1W
- PCS1900: 1W
* Control Via AT Commands
Support embedded script Language
* LUA script Language
Specifications for Data transfer
* WCDMA
- Max.384Kbps(DL), Max.384Kbps(UL)
* EDGE
- Max. 236.8Kbps(DL),Max.118Kbps(UL)
* GPRS
- Max. 85.6Kbps(DL), Max.42.8Kbps(UL)
* CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
Specifications for SMS
* Point to point MO and MT
* Text and PDU mode
Specifications for CSD
* Support in GSM and WCDMA
Specifications for Network Identity and Time zone (NITZ)
* Support in GSM and WCDMA
Specifications for video call
* DTMF on H245
* Support standard WCDMA 64kbps(CS) Video call
Other features
* USB Driver for Microsoft Windows 2000/XP/Vista
* USB Driver for Linux 2.6.16
* Firmware update via USB
* MMS
* TCP/IP
* FTP/HTTP/HTTPS/SMTP/POP3
* FOTA
* USB Audio
Advantages
Built to fulfill many needs with below criteria:
- Sending / Receiving messages
- Broadcasting messages
- Cost Saving purposes
- Enterprise level services
Features
- Multiple Send/Receive messages at the same time
- Broad Coverage Area
- Wide Broadcasting in speedy time
- Portable device
- Convenience
- Accurate
- Economic, nothing messages left, avoid human error
- Efficient & Effective
- Multi-terminal
Application
- Hypermarket / Shopping Centre
- Distribution companies
- Hotel
- Tour / Travel
- Transportation Agent
- Enterprise companies
- Hospitals
- TV Stations / Media
- Oil Companies
Description
- Data Circuit asynchronous transparent and non transparent up to 14,400 bits/s
- Baud Rate: 300 ~ 115200 bits/s
- Baud Rate Auto: 2,400 ~ 19,200 bits/s
- Voice/Fax Switch able
- GPRS
- WAP
Preparation (Before operating)
- SMS applications, need to apply to the local cellular service provider
- Data Transmit, need to apply to the local cellular service provider, max speed 9.6kbits/s. Attention: number of voice cellular can be called differently from number of data cellular. To obtain the feature, has to call and ask to the local cellular service provider
- Fax, can be as Fax Modem, need to ask this feature to the local cellular service provider. Normally the fax number cellular will be different form voice number cellular.
- Hardware needed Connection/Setup
A. Cables supplied
B. Interface multi-serial card (for model with serial port only), not supplied
C. Antennas
-
Use Software bundled (English language), or using AT Command, or using other HyperTerminal software such PC Com etc.
1. HyperTerminal
2. Please insert the SIM Card
3. Open the power switch, the indication led is bright.
4. When the indication LED is flash, the into normal work state.
Working Enviroment:
Win7,Vista,XP,Linux,Mac...Os.
As professional manufacture in modem pool for years,you will be sure to get the most competitive price.good quality and fast delivery from us.Sample is available fo your test,if possible you are welcome to our factory directly,discuss face to face.
The price is different according to different module inside,wavecom or siemens,up to you.Here below are the model list for your reference.
Here below is our own SMS software screenshot:
Accessories:
1.32 Port Modem Pool host one
2.USB Cable
3.32pcs SMA antennas
4.CD driver
Clear Picture:
How to insert sim card ?
Running enviroment
