3G 16 Port Modem Pool for Send SMS MMS

The SIM5215 series is a Multi-Band WCDMA/GSM/GPRS/EDGE module solution which supports WCDMA 384kbps for data transfer.

With abundant application capability like embedded LUA script, TCP/UDP/FTP/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.

Its unique camera/video call feature shall add value to security solutions. It is ideal for a  wide range of products including AMR, Gateway, Telematics, Tracking solution, Security solution and much more.

Product Description:

1.3G 16 Port Modem Pool

2.based on SIM5215 Module

3.USB interface

4.Send bulk SMS MMS

General features

* SIM5215A: Dual-Band UMTS/HSDPA 850/1900MHz
                     Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

* SIM5215E: Dual-Band UMTS/HSDPA 900/2100MHz
                       Tri-Band GSM/GPRS/EDGE 850/900/1800MHz

* SIM5215J: Dual-Band UMTS/HSDPA 850(800)/2100MHz
                      Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

* GPRS multi-slot class 12

* EDGE multi-slot Class 12
* WCDMA 3GPP release 99
* Output power
       - UMTS 1900/850: 0.25W
       - UMTS 2100/900: 0.25W
       - GSM850/GSM900: 2W
       - DCS1800: 1W
       - PCS1900: 1W
* Control Via AT Commands

Support embedded script Language

* LUA script Language

Specifications  for  Data transfer

* WCDMA
         - Max.384Kbps(DL), Max.384Kbps(UL)
* EDGE
         - Max. 236.8Kbps(DL),Max.118Kbps(UL)
* GPRS
         - Max. 85.6Kbps(DL), Max.42.8Kbps(UL)
* CSD
         - GSM data rate 14.4Kbps
         -  WCDMA data rate 57.6Kbps

Specifications for SMS

* Point to point MO and MT
* Text and PDU mode

Specifications for CSD

* Support in GSM and WCDMA

Specifications for Network Identity and Time zone (NITZ)

* Support in GSM and WCDMA

Specifications for video call

* DTMF on H245
* Support standard WCDMA  64kbps(CS) Video call

Other features

* USB Driver for Microsoft Windows 2000/XP/Vista
* USB Driver for Linux 2.6.16
* Firmware update via USB
* SMS MMS , Voice call
* TCP/IP
* FTP/HTTP/HTTPS/SMTP/POP3
* FOTA
* USB Audio

Main Advantage

Industrial design, no signal or freezes automatically restart Each com port with independent switch controlled Each individually removable, easy maintenance 16 modem in one box, convenient and diligent Big and small SIM card slot available
Independent of each audio input and output, support microphone and audio access.

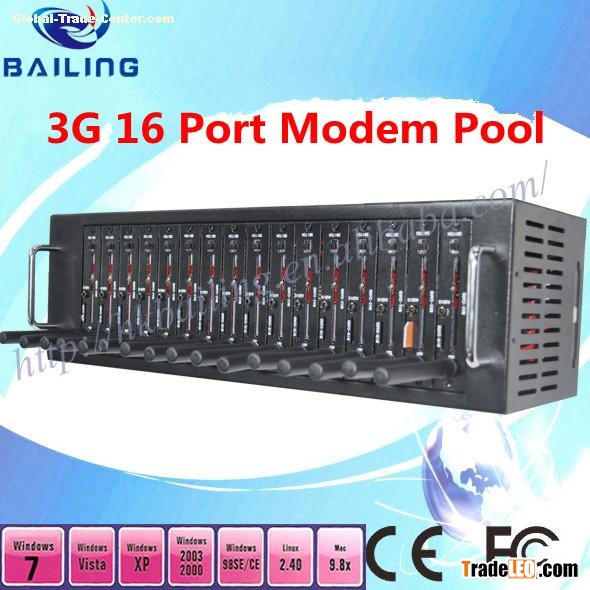

The Picture of 16 Port Modem Pool:

Packing details

How to insert sim card ?

Storage Picture

Running Enviroment
