Key Features

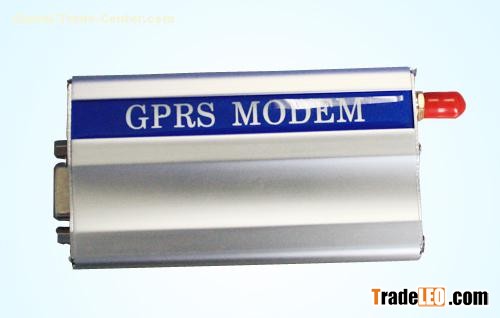

USB GSM/GPRS modem pool

based on Wavecom industrial modules

Wavecom q24plus q2403 q2406 q2303 tc35i mc55 mc55i etc

GSM: 850/900/1800/1900mhz or 900/1800MHz

1x SIM card(big/small) slots

Wireless access to internet

Comply with GSM phase2 standard

Cluster send and receive SMS

Maximum transmitting speed 115KBps

SMA antenna:3DBI

Input voltage: 100 to 240V

Working temperature: -20 to +60 degrees

Storage temperature: -25 to +70 degrees

Double tone multi-frequency function(DTMF)

send 4800-5600SMS per hour

Gross Weight:3kg

Interface:USB or RS232 RJ45

Basic Features:

Asynchronous,transparent or non-transparent,to a maximum 14400 bits / s

Baud Rate : 300-115200 bits / s

Automatic baud rate: from 2400 to 19200 bits / s

Fax support three

Switched voice and fax

V.42, V.42bis

GPRS compatible

WAP compatible

SMA Antenna Interface

SIM Card Outlet

Power connector

RS-232, the Mini-DB-9 connector

AT command control ( GSM 07.07 and 07.05)

Application:

Large shopping malls, supermarkets

Professional market, large wholesalers

Large hotels,large-scale entertainment

Large agencies

Transport, logistics industry

Large enterprises, and institutions

Large hospitals, large bookstore

Newspaper, television and radio stations

Oil Company ( other chain business model)

Government agencies or large township

Hardware Feature:

upport dual band:900/1800 MHz or quad-band GSM: 850/900/ 1800/1900 MHz

Meet the ETSI GSM 2 + standards

Class 4 ( 2W @ 900 MHz) Class 5 ( 1W @ 1800 MHz)

5 -24 VDC power supply (which be directly connected to the nickel- metal hydride or lithium

batteries)

Operating Temperature: -20 ° C - + 55 ° C

Storage temperature: -25 ° C - + 70 ° C

Size: standard 1U chassis

Supported operating systems:

--Windows 7 (Home, Premium, Pro, Ultimate, Enterprise)

--Windows Vista (Home, Business, Ultimate, Enterprise)

--Windows XP (Pro and Home)

--Windows Server 2003 (original and R2)

--Windows 2000 (Server and Pro)

Installation steps

A use power cable to connect device

B Insert SIM card, make sure chipset connect with card reader

C insert PCI card to computer, follow prompts to install driver

D turn on power, red LED light, all red light flashing stands equipment begins work
