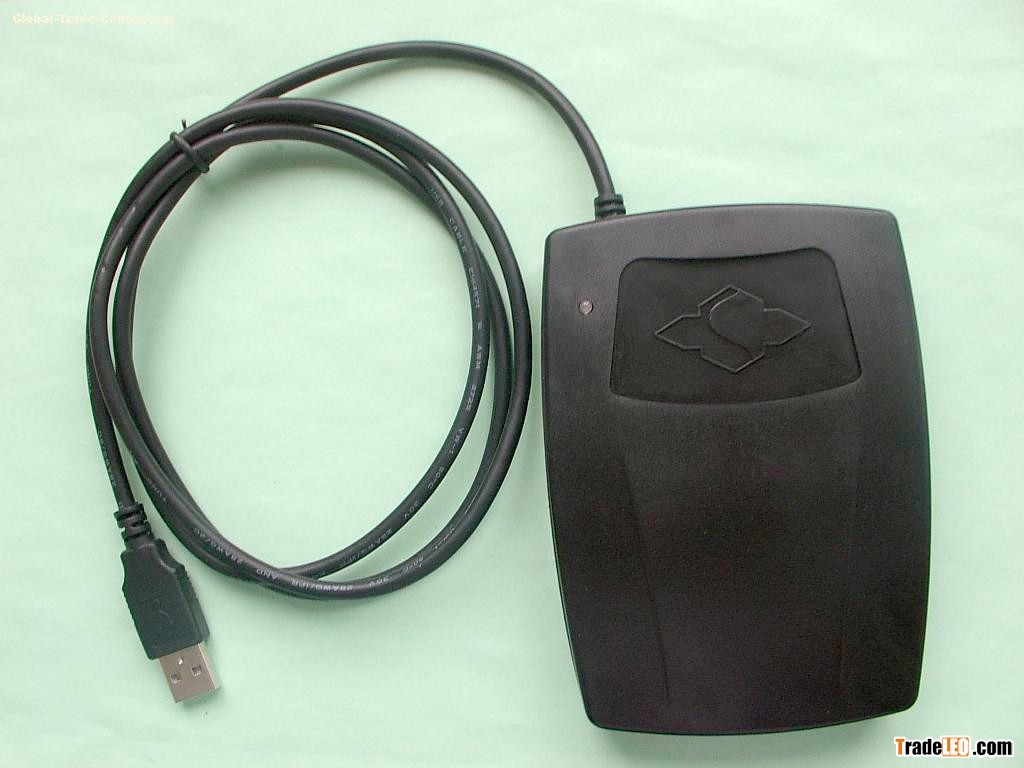

Model NO.: MR701UH/SHK

RF Chip: NXP CLRC632

Working Frequency: 13.56MHz

RF Standard: ISO14443A, ISO14443B, ISO15693 and ISO7816

Reading range: 100mm (Mifare One, special distance)

SAM: 2lots, support ISO7816 T=0, 9600bps&38400bps

Interface: RS232C or USB (inlay the CP2102 USB to RS232 converter)

Baud Rate: 9600~115200bps

Power: DC5V±10%

Max. Consumption: 0.9W

Dimension: 123mm*88mm*25mm

Weight: about 150g

Operating Temperature: -25~+85 °C

Storage Temperature: -40~+125 °C

PC Software: PTransWin

SDK: base on Windows, free

Program Code: VC, VB, C++ Builder, DELPHI, Power Builder

Cards supported types:

ISO14443A

Mifare One S50

Mifare One S70

Mifare One Mini

Mifare Ultra Light

ISO14443-4 (T=CL) TYPE A Bi-face CPU Card

ISO14443B

AT88RF020

AT88RF080

SR176

SRI512

SRIX4K

ISO14443-4 (T=CL) TYPE B Bi-face CPU Card

ISO15693

I.CODE SLI

Tag-it HF-I

Other tags compliant the ISO 15693

ISO7816

Low-speed SAM Card (9600bps)

High speed SAM Card (38400bps)
