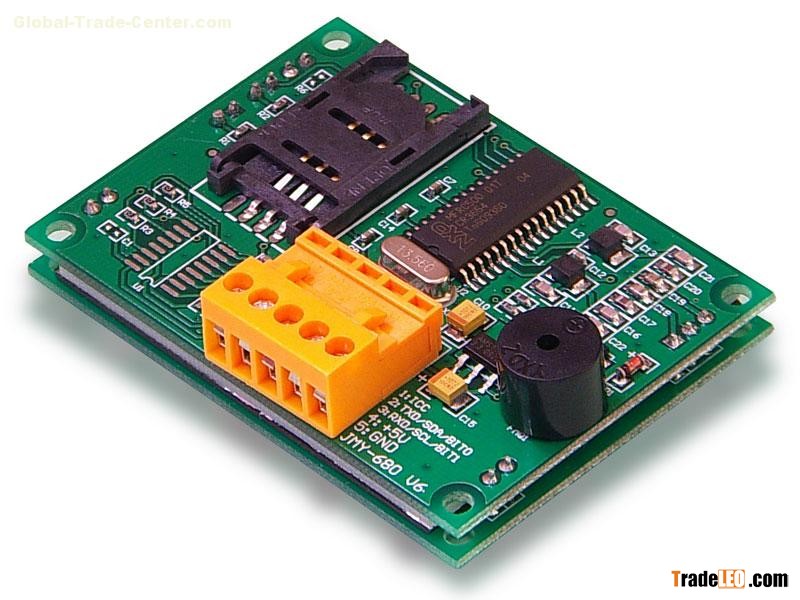

Model NO.: JMY680H

Antenna: Built in

Protocol: ISO14443A, ISO14443B and ISO15693 and ISO7816

PCD model: NXP CL RC632

Working frequency: 13.56MHz

Card supported: Mifare 1K/4K, FM11RF08, Ultra Light, DesFire, Mifare ProX, SR176, SRI512, SRI1K, SRI2K, SRI4K, SRIX4K, T=CL smart cards(both ISO14443A & ISO14443B) , TI TagIt, I.Code SLI, ST LRI and other tags according to ISO15693 and ISO7816 SAM cards (both T=0&T=1)

Anti collision ability: Full functions anti collision; be able to process multi-cards; be able to set operate single card only

Auto detecting card: Supported, default OFF

SAM slot: 1 slot

SAM baud rate: 9600bps/38400bps

ISO7816 PPSS set: supported

EEPROM: 512 Bytes

Power supply: DC 5V (±0.5V)

Interface: IIC/UART/RS232C (select when place order)

Communication rate: IIC-400Kbps; UART-19.2Kbps/115.2Kbps

Max. command length: 254 Bytes

Interface level: UART/IIC: 3.3V (TTL level; 5V tolerance)

Power consumption: 80mA

Reading range: 80mm (depending on card)

Dimension: 70mm*50mm*16.5mm

Weight: about 120g

ISP: Yes

Operating temperature: -25 to +85 °C

Storage temperature: -40 to +125 °C

RoHS: Compliant
