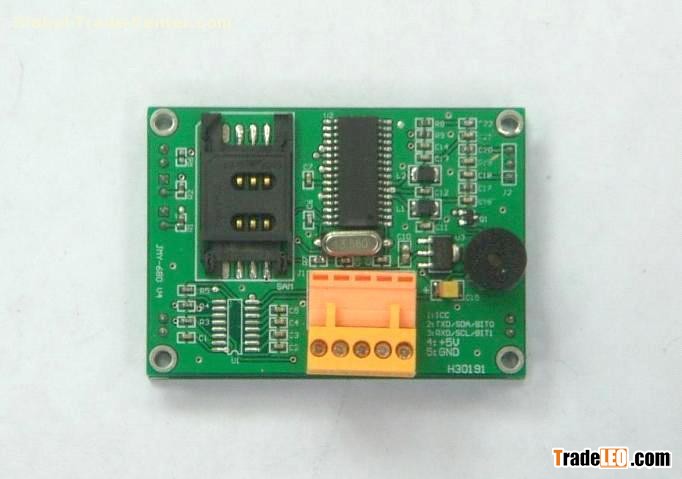

Model NO.: JMY680A

Protocol: ISO14443A and ISO7816

Antenna: Built in

PCD model: NXP MF RC500

Working frequency: 13.56MHz

Card supported: Mifare 1K/4K, FM11RF08, Ultra Light, DesFire, Mifare ProX,  T=CL smart cards(ISO14443A) and ISO7816 SAM card (T=0&T=1)

Anti collision ability: Full function anti collision; be able to process multi-cards; be able to set operate single card only

Auto detecting card: Supported, default OFF

SAM slot: 1 slot

SAM baud rate: 9600bps/38400bps

ISO7816 PPSS set: supported

EEPROM: 512 Bytes

Power supply: DC 5V (±0.5V)

Interface: IIC/UART/RS232C (select when place order)

Communication rate: IIC-400Kbps; UART-19.2Kbps/115.2Kbps

Max. command length: 254 Bytes

Interface level: UART/IIC: 3.3V (TTL level; 5V tolerance)

Power consumption: 80mA

Reading range: 80mm (depending on card)

Dimension: 70mm*50mm*16.5mm

Weight: about 120g

ISP: Yes

Storage temperature: -40 to +125 °C

RoHS: Compliant

OEM: yes
