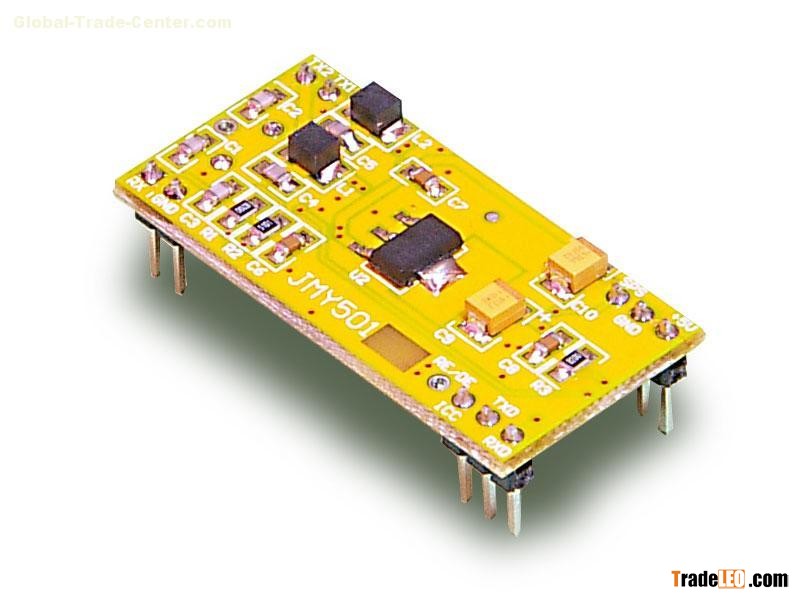

Model NO.: JMY501H

PCD model: NXP CL RC632

Working frequency: 13.56MHz

Card supported: Mifare 1K/4K, FM11RF08, Ultra Light, DesFire, Mifare ProX, SR176, SRI512, SRI1K, SRI2K, SRI4K, SRIX4K, T=CL smart cards(both ISO14443A & ISO14443B) , TI TagIt, I.Code SLI, ST LRI and other ISO15693 tags

Anti collision ability: Full function of anti-collision; be able to process multi-cards; be able to set operate single card only

Auto detecting card: Supported, default OFF

EEPROM: 512 Bytes

Power supply: DC 5V (±0.5V)

Interface: IIC & UART (selected by SPS pin, recommend to use IIC)

Communication rate: IIC-400Kbps; UART-19.2Kbps/115.2Kbps

Max. command length: 254 Bytes

Interface level: 3.3V (TTL level; 5V tolerance)

Power consumption: 70mA

Reading range: 100mm (depending on card and antenna design)

Dimension: 21mm * 42mm

Package: DIP32

Weight: about 15g

ISP: Yes

Operating temperature: -25 to +85 °C

Storage temperature: -40 to +125 °C

RoHS: Compliant

Antenna

Normal antenna:

TX500, size: 70mm*70mm, 90mm reading range

TX501, size: 50mm*50mm, 70mm reading range

TX502, size: 30mm*30mm, 60mm reading range

We offer the OEM service.
