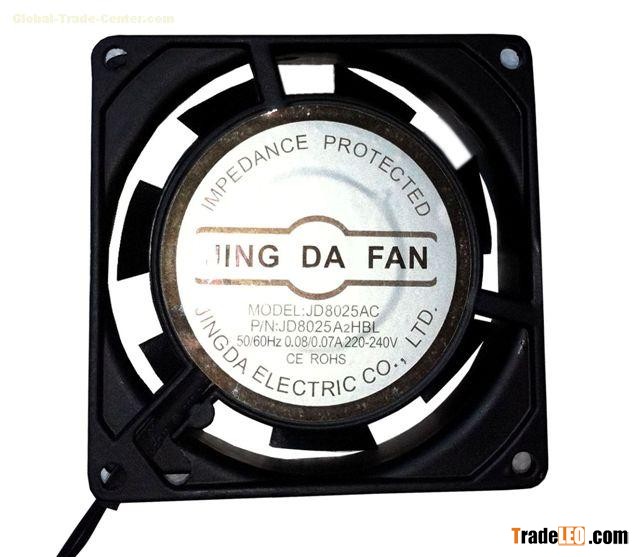

Specifications:

Size:80 * 80 * 25mm

Working Voltage:AC110V(85V-110V)/AC220V(190V-250V)/AC380V

Current:0.04/0.14A

Frequency:50/60 (Hz)

Power:15.2/19 (W)

Speed:2300/2800（RPM）

Air flow:17/22（CFM）

Pressure:3.0/4.5（mmH2O）

Noise:29/34 (dBA)

Weight:230 (g)

Certification: CE ROSH SGS CCC ISO9001

Packing: Each one with one white box or as the customers’ requirement

Material:

frame:: Aluminum Alloy with plastic-spraying/P.B.T

Impeller: Plastic P.B.T.

Coil: Enamelled copper wire

Motor: Shade Pole Induction Motor

Bear type: Ball bearing/Sleeve bearing

Lead Type: Wire Lead /Terminal

Performance:

Insulation Resistance:10MΩ at 500VDC between lead and frame

Operation Temperature:-20°C~80°C

Dielectric Strength:1 min at 1500vac/50-60Hz,Current＜5mA

Operation Humidity:20%~85%

Use of life: Ball bearing 50,000 hours and Sleeve bearing 20,000 hours (at 25°C)

Special can be customized
