box-525

Construction  Aluminum extrusion

System Board   Intel  D525 Atom  1.80GHz CPU

Chipset   Intel D525+ ICH8M

Memory  DDRIII 2G  up to 8G

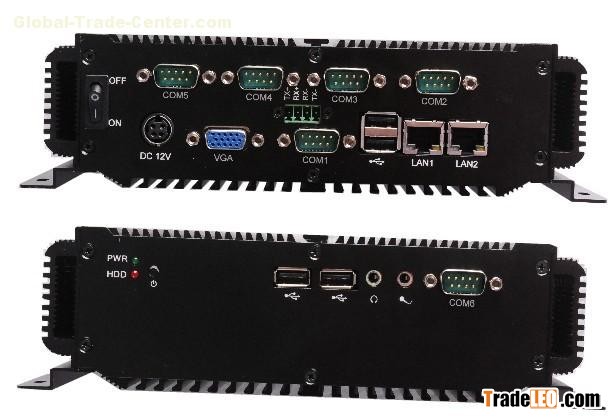

I/O Panel  1x Phone Jack for MIC-In   1x Push button for ITX on/off

            1x Push button for reset   1x POWER LED 1x HDD LED

            4x USB2.0(up to 8x USB   6x DB9 male connectors for COMs

            2x RJ-45  GbE port RTL8111E

Power Consumption    18W (without USB and SATA devices)

Temperature / Humidity  Operating: -25 ~ 70°C  0%-90%, non-condensing

Storage   1x 2.5 inch  SATA HDD or 1x Internal Compac  Flash Type II slot.

Working Voltage   12V Only

Cooling     Fanless and Internal Heat Pipes

Power Supply  Input: 100-240 VAC   50-60 Hz

Output: 60W    12VDC/5A output

Dimensions  210 x 125 x 60( mm )(WxHxD)

Weight        2.5KG

Wall mount   VESA mount   Din Rail moun

SSD16G   RAM  DDRIII 2G
