System Specification

Processor

onboard CPU D2550(1.8Ghz)

BIOS

AMI Plug & Play BIOS

System Chipset

Intel D2550+ ICH10M

System Memory

2 x DIMM, Max 8GB DDR3 1333/1066

Graphic Interface

Integrated on Intel® Atom D2550,24-bit signal channel LVDS support HDMI VGA

Ethernet Controller

2x RJ-45, Gigabit Ethernet_RTL8111E

I/O Chipset

ITE 8718F/HX-L

Serial

6 x RS232(1xRS232/422/485), * ports

USB

4 x USB ports, USB 2.0 compliant

Watchdog Timer

1~256 levels

Key Features

Support dual core Intel Atom D2550 2xGbE, 6xCOM, 4xUSB

I/O Connectors

Front Side I/O

•   4 x USB Type-A Receptacle(Up to 8usb)
•   1 x Power/HDD LED
•   1 x Power Reset Button
•   1 x Power on Button

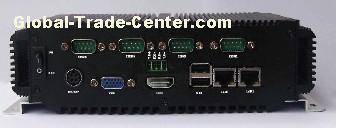

Back Side I/O

•   2 x RJ-45(10/100/1000 Mbps)
•   1 x VGA 15P DSUB 1xHDMI(male)
•   1 xHDMI
•   5 x RS232(2xOptional include 1x RS232/422/485)
•   4 x USB Type-A Receptacle

Mechanical and Environment

Dimensions (L x W)

210mm x 125mm x 60 mm

Color

S:Black

Construction

Aluminum housing / metal

Power Input

+12V DC IN (Lockable, Power Jack)

Net Weight (kg) (without touch)

2.5KG
