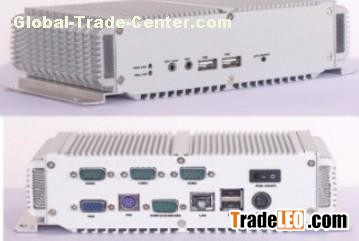

LBOX-270 was used the advanced thermal program with the fanless design. Intel Atom N270 processor + Intel 945 GSE + the ICHvalue="7" tcsc="0" unitname="m" w:st="on">7M of Navy Pier three-chip solution. N270 is a power consumption of only 2.5W 45nm process processor, clocked at 1.6 GHz, 533Mhz FSB

Construction  Aluminum extrusion

System Board   Intel Atom 270  1.6 GHz CPU

Chipset   Intel Atom n270+ ICH7M+945gse

Memory  DDRII 1G  up to 2G

I/O Panel  1x Phone Jack for MIC-In   1x Push button for ITX on/off

              1x Push button for reset   1x POWER LED 1x HDD LED

              4x USB2.0(up to 8x USB)   4x DB9 male connectors for COMs

              1x RJ-45  GbE port RTL8111E  1xVGA

Power Consumption    18W (without USB and SATA devices)

Temperature / Humidity  Operating: -25 ~ 70°C  0%-90%, non-condensing

Storage   1x 2.5 inch  SATA HDD or 1x Internal Compac  Flash Type II slot.

Working Voltage   12V Only

Cooling     Fanless and Internal Heat Pipes

Power Supply  Input: 100-240 VAC   50-60 Hz

Output: 60W    12VDC/5A output

Color: white

Dimensions  210 x 115 x 60( mm )(WxHxD)

Weight        2.5KG

Wall mount   VESA mount   Din Rail moun

SSD16G   RAM  DDRII 1G
