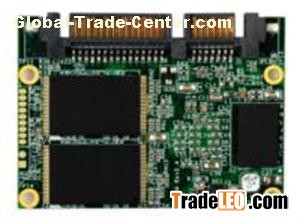

RENICE X5 HALF SLIM SATA SSD

●Performance

Max Sequential Data Read/Write: 240MB/60MB/s (MLC)

240MB/120MB/s (SLC)

● Form factor: Half Slim 54.0mm x 39.0mm x 4.0mm (LxWxH)

● Weight: <10g

● Interface standard: 7+15pin SATAII 3.0 GB/s

● Density: 8GB~256GB (MLC)    2GB~128GB (SLC)

● Input voltage: 5V (±5%) , 3.3V (±5%) Optional

●Environmental Specifications:

Temperature:

– Operation: 0~70°C (Standard)     -40 to 85°C (Industrial)

– Storage: -50 to 95°C

Humidity: 5-95%

Vibration: 20G (7-2000Hz)

Shock: 2,000G (@0.3ms half sine wave)

●Intelligent features:

-Flash management algorithm: static and dynamic wear-leveling, bad block management algorithm

–Supports dynamic power management and SMART (Self-Monitoring, Analysis and Reporting Technology)

– Supports BCH ECC 72bits in 1024 bytes

– Support Power Failure Protection

–Support Secure Erase (Optional)

● Data retention: 10 years

● MTBF: >3,000,000 Hours @25C
