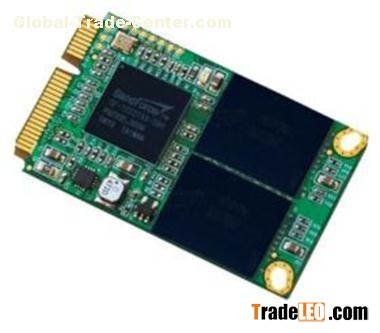

RENICE X5 mSATA SSD

1. Product Overview

Renice X5 50mm mSATA SSD is based on Nand flash storage media, fully compliant with JEDEC MO-300-B industrial standard.

With its small size, good performance and reliability, it is ideal storage solution for embedded computers, data centric servers, and storage devices.

2. Features

●Performance:

Host Transfer Rate: 3.0 GB/s

Max Read Rate: 240MB/s

Max Write Rate: 60MB/s

Access Time: 0.1ms

● Form factor: 50.95mm X 30mm X 3.65mm (LxWxH)

● Weight: <10g

● Interface standard: mSATA

● Density: 8GB~256GB (MLC)  4GB~128GB (SLC)

● Input voltage: 3.3V (±5%)

●Environmental Specifications:

– Operation: 0~70°C (Standard)     -40 to 85°C (Industrial)

– Storage: -50 to 95°C

Humidity     5-95%

Vibration     20G(7-2000Hz)

Shock   2,000G(@0.3ms half sine wave)

●Intelligent features:

–Flash management algorithm: static and dynamic wear-leveling, bad block management algorithm

–Supports dynamic power management and SMART (Self-Monitoring, Analysis and Reporting Technology)

–Supports hardware BCH ECC engine: 72-bit per 1 KB

–Performance Optimization：TRIm (requires OS support)

– Support Power Failure Protection

–Support Secure Erase (Optional)

● Endurance

Read endurance: unlimited

Write endurance: >8 years @ 100GB write/ day (30GB SSD)

● Data retention: 10 years (@25)

● MTBF: >2,000,000 Hours
