Brand:InMax
Model:i310A
MOQ:-0 -

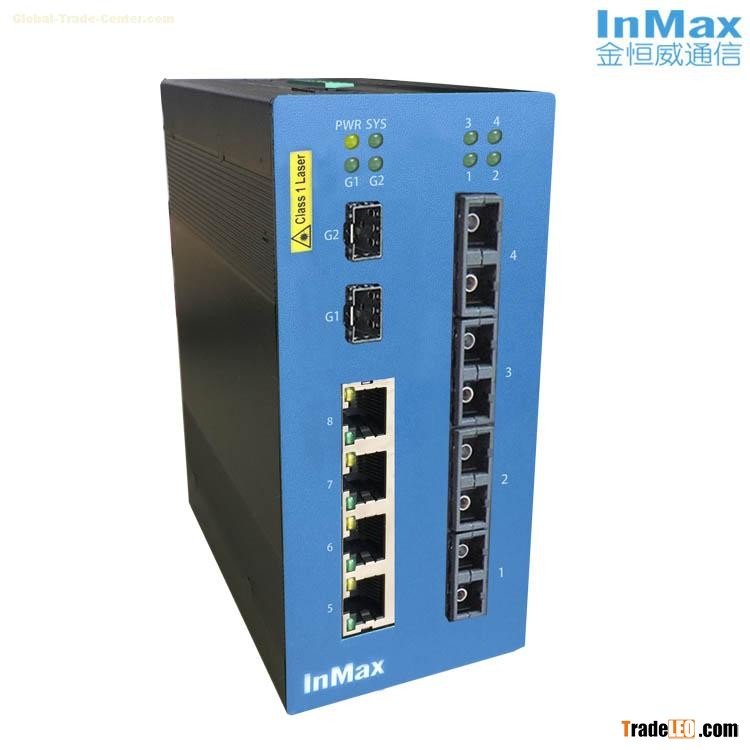

InMax i310A 4+4+2 Port Unmanaged Industrial Ethernet Switches
Man Features
Ø 4x10/100baseTX,4x100baseFX ports+2x1000baseX
ØIndustrial-grade design with -40 to +75°C operating
temperature and redundant power inputs
Ømetal, IP40 protection,DIN-Rail mounting, wall mounting
Specifications
Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3z
Interface:
Fiber Ports: 100base-FX(SC/ST/FC connector)
1000base-X (SFP slot)
RJ45 Ports: 10/100baseTX auto negotiation
LED:
Port Led:Copper: link1~4, Act1~4
Fiber: link/ Act 5,6,7,8,G1,G2
Power Led:PWR
Power Requirements:
Input Voltage: 24VDC (12 ~ 36VDC), redundant dual inputs
Input Current: MAX. <0.41A@24VDC,<10W
Overload Current Protection: Present
Reverse Polarity Protection: Present
Connector: 6-contact terminal blocks
Mechanical Properties:
Housing: metal, IP40 protection
Dimensions: 60.2 x 112.5 x 138.5 mm
Weight: 750g
Installation: DIN-Rail mounting, wall mounting
Environmental Limits:
Operating Temperature:
Standard Models: 0 to +60°C (32 ~ 140°F )
Wide Temp. Models:-40 to +75°C (-40 to 167°F)
Storage Temperature: -40 to +85°C (-40 to 185°F )
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications:
Safety: UL 60950-1
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 3
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty Period: 5 years
Dimensions
Ordering Information
