Brand:LingJiang
Model:LBOX-2550
MOQ:1 Sets
Send Inquiry

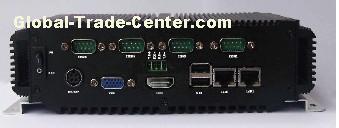

System Specification Processor onboard CPU D525(1.8Ghz) BIOS AMI Plug & Play BIOS System Chipset Intel® ICH10M+inteL d525 System Memory 2 x DIMM, Max 8GB DDR3 1333/1066 Graphic Interface Integrated on Intel® Atom D2700,24-bit signal channel LVDS support HDMI VGA Ethernet Controller 2x RJ-45, Gigabit Ethernet_RTL8111E I/O Chipset ITE 8718F/HX-L Serial 6 x RS232(1xRS232/422/485), * ports USB 4 x USB ports, USB 2.0 compliant Watchdog Timer 1~256 levels Key Features Support dual core Intel Atom D525 2xGbE, 6xCOM, 4xUSB I/O Connectors Front Side I/O 4 x USB Type-A Receptacle(Up to 8usb) 1 x Power/HDD LED 1 x Power Reset Button 1 x Power on Button Back Side I/O 2 x RJ-45(10/100/1000 Mbps) 1 x VGA 15P DSUB 1xHDMI(male) 1 xHDMI 5 x RS232(2xOptional include 1x RS232/422/485) 4 x USB Type-A Receptacle Mechanical and Environment Dimensions (L x W) 210mm x 125mm x 60 mm Color S:Black Construction Aluminum housing / metal Power Input +12V DC IN (Lockable, Power Jack) Net Weight (kg) (without touch) 2.5KG
