Product brief introduction

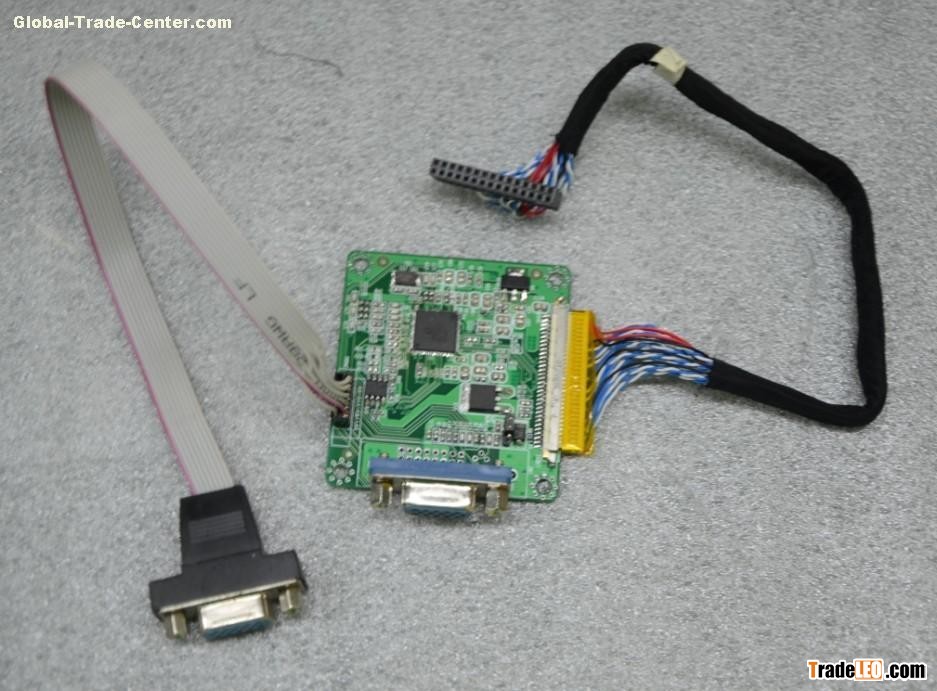

1"LVDS change into VGA/DVI signal converter"used to change the LVDS mode input signal

into the VGA/DVI model output signal

2.It was based on the usual interface design, compatible with the main LCD panel on the market.

3.Fully support LCD panel refresh rate at :50 Hz/60Hz LCD panel

Maximum supported refresh rate: 024*768/ 1366*768 *60Hz

Main parameter:

Size: 59mm×52mm×12mm

Input interface: support single 6/8 LVDS signal, 2*15 pin. 2.0mm spacing

Output interface: standard DB15/10 pin VGA built-in, stand 3*8 pin DVI-I port

Display support:Maximum resolution ratio: 1366*768/1024*768*60Hz

Working environment:Temperature:-50-50 Celsius degree,Humidity:5%-85%

Module specification

LVDS-VGA/DVI Signal converter installation:

Please install the converter correctly, if not, it will not work, even will caused damage to the other parts.
