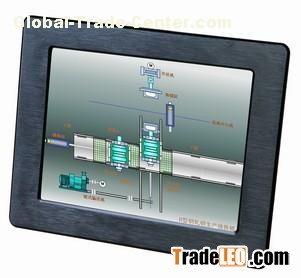

12.1"industrial LCD monitor(ICP-121)

·12.1 "high brightness LCD, resistive touch screen is optional
·12.1"industrial LCD monitor(ICP-121) brightness and contrast can be adjusted manually or automatically, having a power saving mode
·High-strength aluminum alloy panel, surface oxidation treatment after drawing
·12.1"industrial LCD monitor(ICP-121) overall protection grade IP64, front panel IP65. dustproof and shockproof

Specifications :

Display 12.1" TFT LCD
structure Steel chassis, glass sandblasting oxidation and high-strength aluminum alloy, with dustproof and shockproof
Color Black, or user-specified
Input signal Standard 15 pin D-SUB interface ，RGB signal ，with multi-scan function，AV and TV interface are optional.
Control Interface Membrane keyboard ，OSD( On Screen Display)
Maximum resolution VGA 800×600
Contrast 500：1
Brightness 300(cd/㎡)
Power External DC12V power supply
Power Supply 12W
Gross Weight 5.7KG
Work temperature -10°C—50°C
Storage Temperature -20°C—60°C
Work humidity 20—90%
Storage humidity 5-95% Non-condensing droplets
Impact 15G peak acceleration (11 msec, duration)
Vibration 1G peak, 5 ~ 500Hz (at Random)
Installation panel type, wall type, table type, bracket type
Size 330mm*256mm*44mm
Accessory power adapter, VGA cable, certification, user’ manual, packing list

Ordering information:
1：ICP-121    12.1"Industrial LCD monitor,w/VGA,w/12V power supply
2：ICP-121T   12.1"Industrial LCD monitor,w/VGA,w/12V power supply,w/ 5 wires touch Screen

We also produce  Industrial LCD Monitor to 8.4",10.4",12.1", 15",17",19". The more relevant the Industrial LCD Monitor information, welcome to inquiry!
