Brand:GreenTouch
Model:GT-SAW
MOQ:1 Pieces
SAW touch screen/touch panel
1, Sensitive and fast response
2, Highest resolution
3, Dirt and splash resistive capability

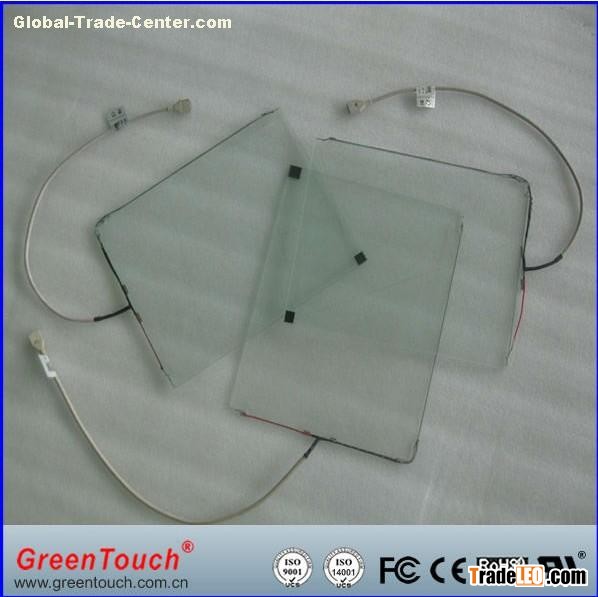

SAW touch screen,touch panel,touch overlay:
Green Touch main produce saw (Surface Acoustic Wave )touch screen panel, IR(Infrared) touch screen, Interactive touch foil/ Nano touch and 4 wire, touch screen monitor and 5 wire resistive touch screen. Etc.
Standard Surface Acoustic Wave Touch Screen uses beveled edge on the 3mm, 4mm or 6mm glass touch screen to lower the height profile of the transducers. It is incomparable for clarty and reliability, mainly feature pure-glass for durable scratch-resistant surface, superior image clarity, resolution and light transmission. In addition, they are sensitive and fast on response, accurate touch position performance. Popular applications mainly include medical, point-of information, outdoor multimedia marketing and banking.
Advantages:
Superior image clarity with high light transmission
Sensitive and fast response
Durability, deep scratch resistance and abrasion
Highest resolution
Activated by finger, gloved hand leather or soft stylus
More than 50 million touches in a single point
Dirt and splash sealed capability
Application
Point-of-information kiosks
Vending and ticket sales
Electronic catalogs
Gaming, lottery and amusement
Public pay phones
Multimedia marketing
Banking/financial transactions
Industrial control rooms
Computer-based training
SAW touch screen Specification:
1.SAW touch screen fit for IEC IP65 water-pro standards.
2.screen material use tampered glass ,which provides excellent impact performance and strength several times that of ordinary glass.Even if a touchscreen is broken, the fragments are safe with no sharp edges.
3.Water-proof touchscreens are typically designed for outdoor and industrial control applications.
| Technology | Surface Acoustic Wave(SAW) |
| Resolution | 4096*4096 |
| Material | Pure glass |
| Glass thickness | 3mm,4mm,6mm |
| Deviation of Error | 2mm |
| Response Time | Less than 10.4ms |
| Touch Activation Force | Touch force less than 100g(adjustable) |
| Durability | Scratch-free;More than 50,000,000 touches in one location without failure |
| Surface Hardness | Mohs hardness rating of 7 |
| Multi Point Touch | Software discrimination |
| Controller Operating Temperature | 0°C to +65°C |
| Touch Screen Operating Temperature | -20°C to +50°C |
| Humidity | 90% RH at 40°C, non condensing |
| Operation Altitude | 3000m |
PS:
1. We can customize touch screen size according to your needs.
2. The technical specification above would be updated every month, please kindly contact us for the update touch screen informations.
